Gigabyte

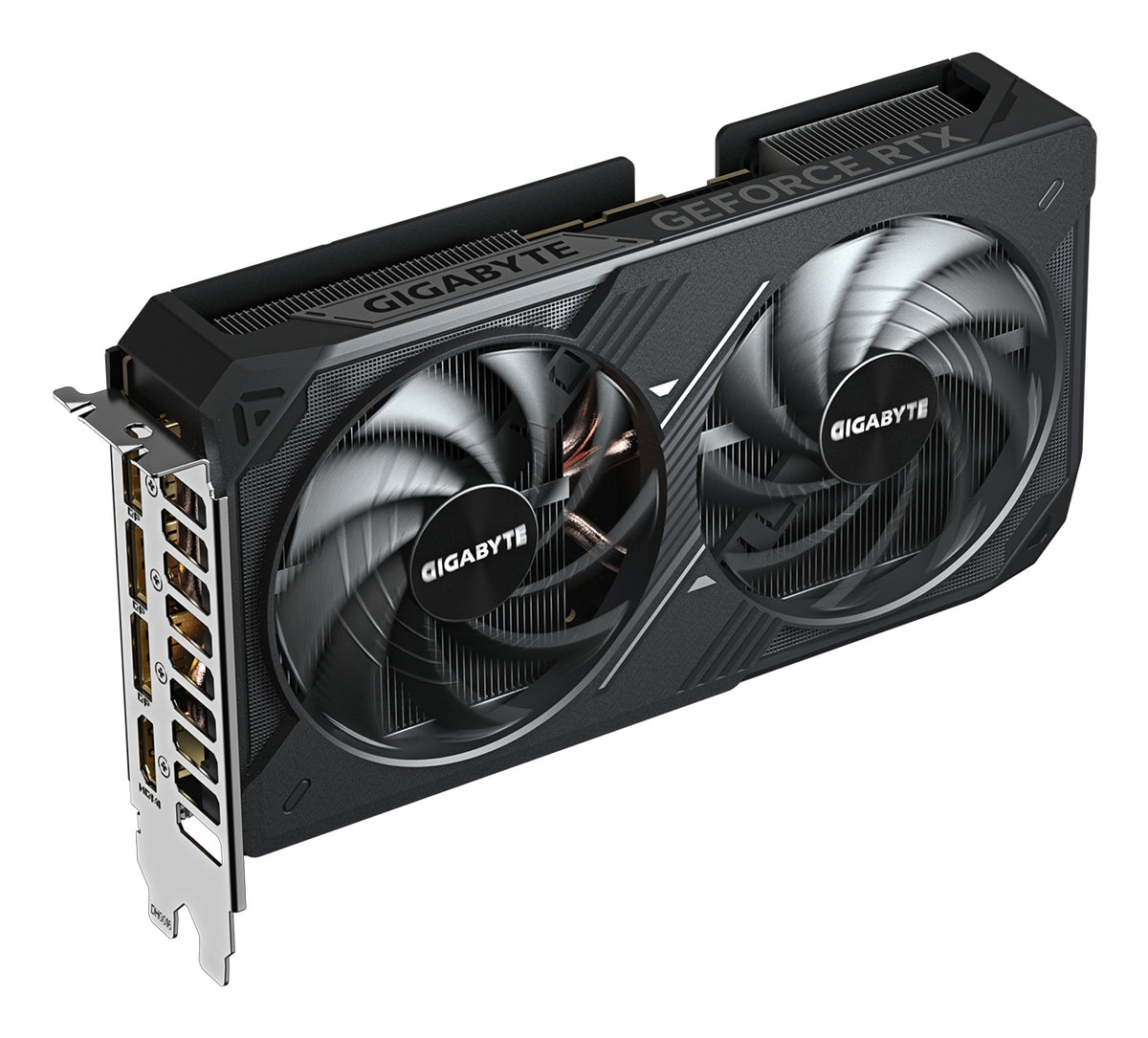

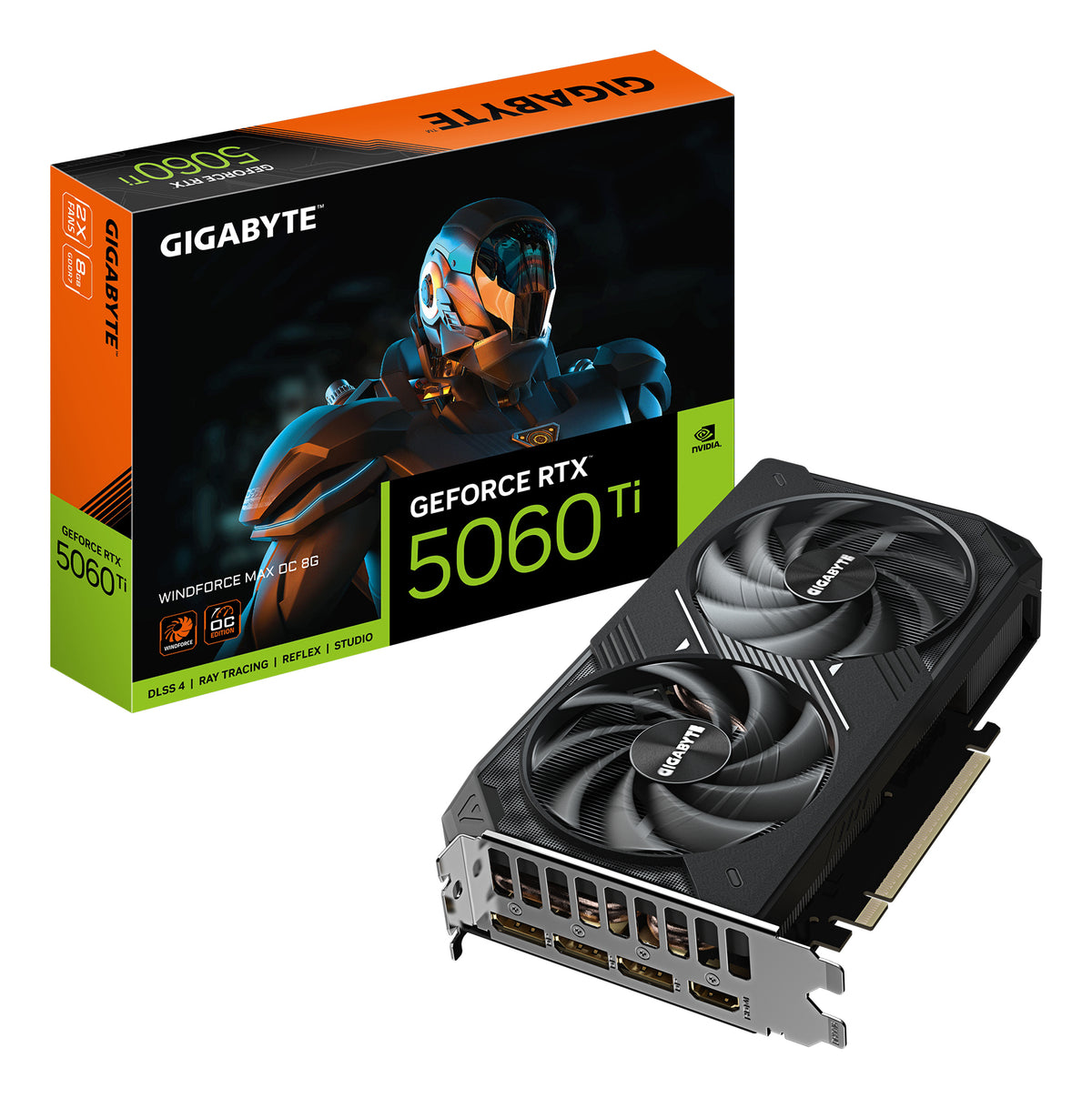

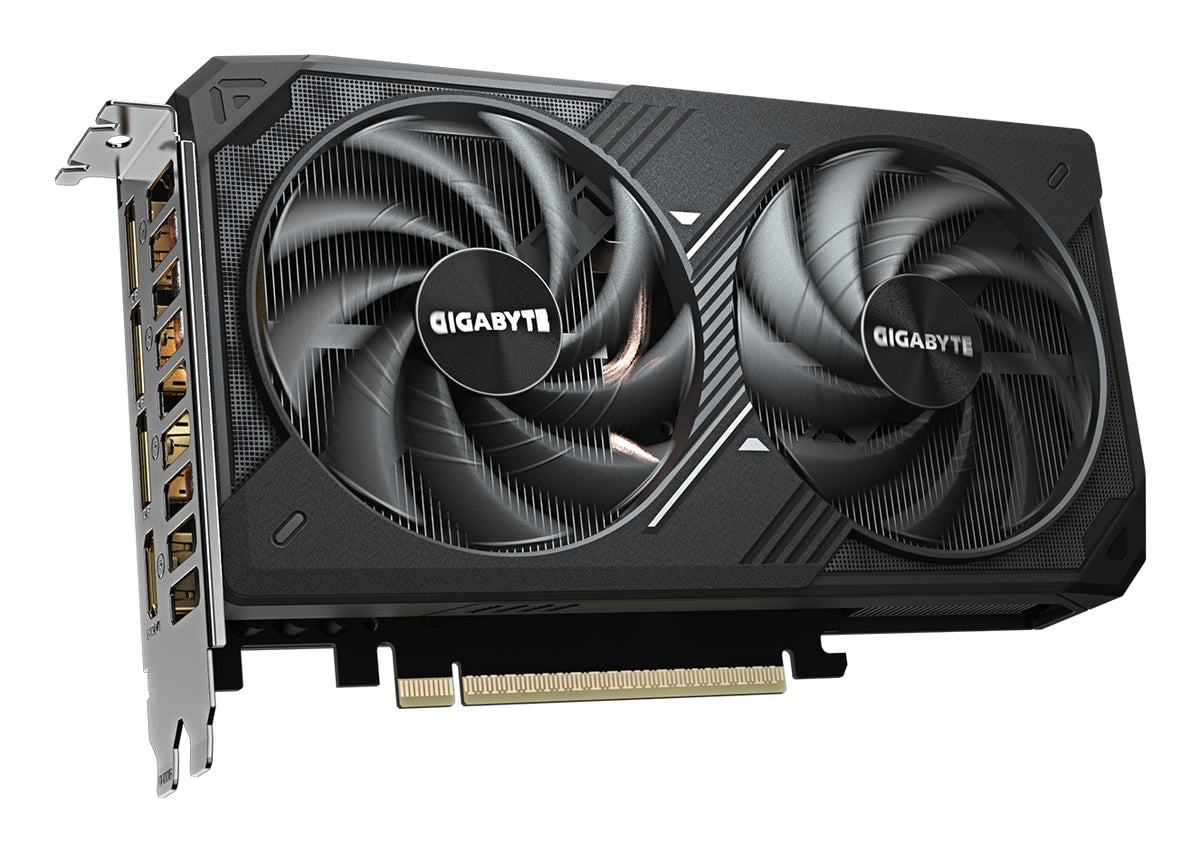

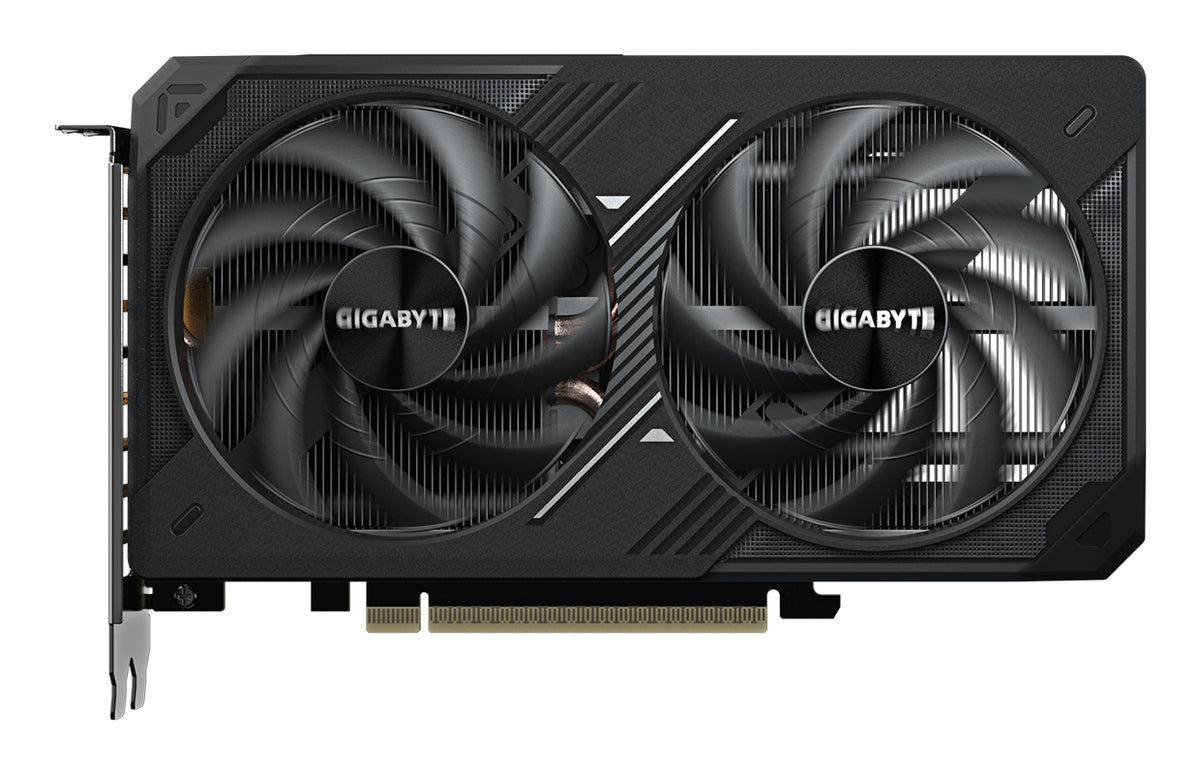

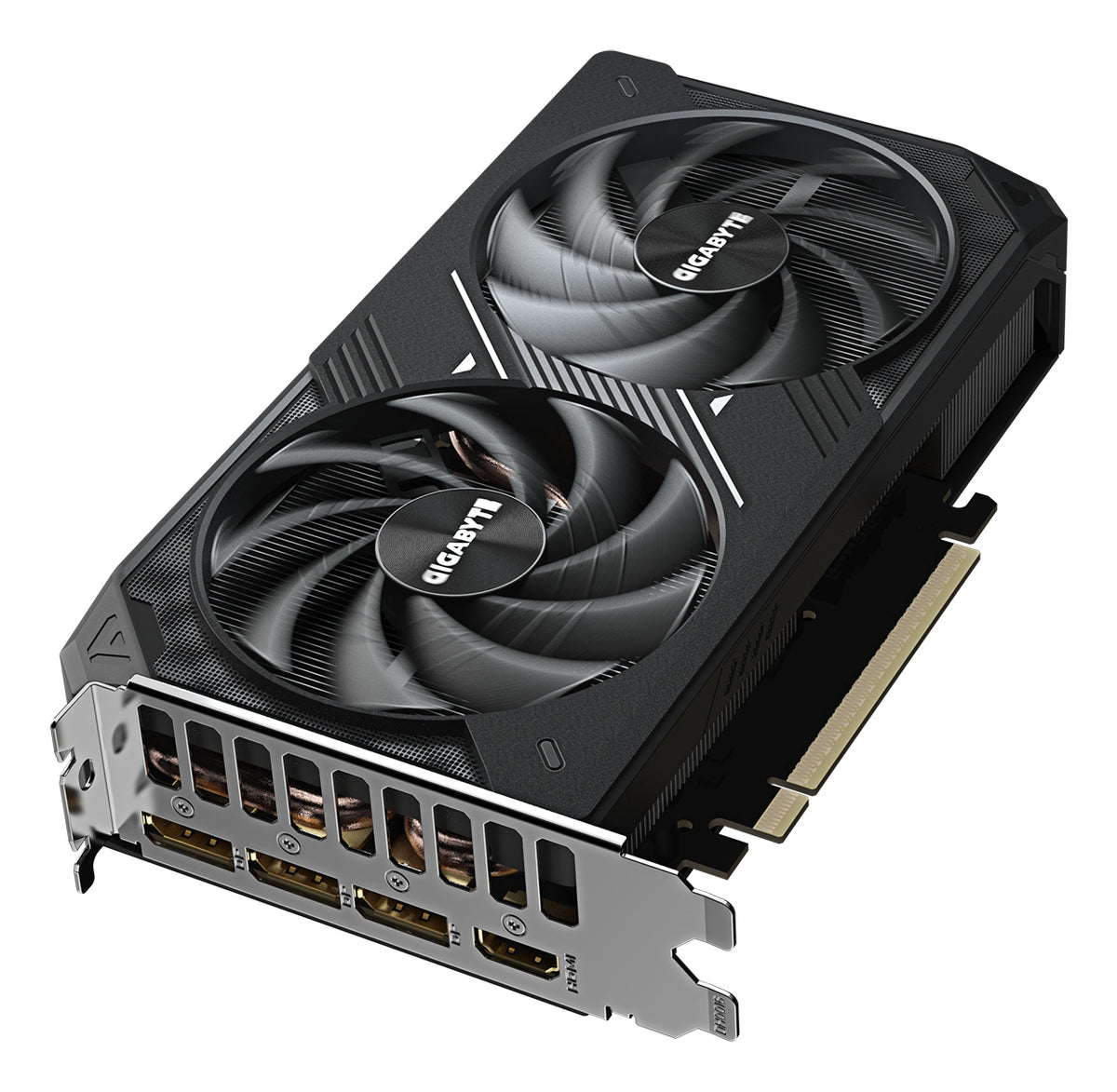

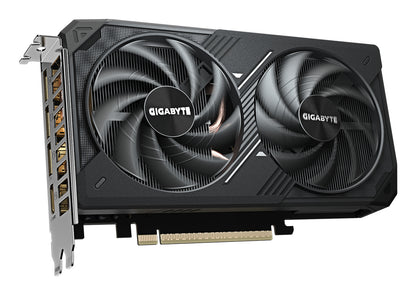

Gigabyte GeForce RTX™ 5060 Ti WINDFORCE MAX OC 8G, 2587 MHz, CUDA 4608, 28
Gigabyte GeForce RTX™ 5060 Ti WINDFORCE MAX OC 8G, 2587 MHz, CUDA 4608, 28
Couldn't load pickup availability
Gigabyte GeForce RTX™ 5060 Ti WINDFORCE OC 8G, 2587 MHz, CUDA 4608, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 650W, DisplayPort 2.1b *3 HDMI 2.1b *1
SPECIFICATION
Graphics Processing
GeForce RTX™ 5060 Ti
Core Clock
2587 MHz (Reference card :2572 MHz)
CUDA® Cores
4608
Memory Clock
28 Gbps
Memory Size
8 GB
Memory Type
GDDR7
Memory Bus
128 bit
Card Bus
PCI-E 5.0
Digital max resolution
7680x4320
Multi-view
4
Card size
L=208 W=120 H=40 mm
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
4.6
Recommended PSU
650W
Power Connectors
8 Pin*1
Output
DisplayPort 2.1b *3
HDMI 2.1b *1
Accessories
Quick guide
FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX™ 5060 Ti
Integrated with 8GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
Reinforced structure
Features
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX 5060 Ti
- Integrated with 8GB GDDR7 128bit memory interface
- WINDFORCE cooling system
- Reinforced structure
Specifications
| Brand | Gigabyte |
|---|---|
| Model | GV-N506TWF2MAX-8GD |
| CUDA | Yes |
| CUDA cores | 4608 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5060 Ti |
| Processor frequency | 2572 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 128 bit |
| Memory clock speed | 28000 MHz |
| Data transfer rate | 28 Gbit/s |
| Interface type | PCI Express x8 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1b |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Warranty period | 3 year(s) |
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 2X |
| Number of fans | 2 fan(s) |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Number of slots | 2 |
| Product colour | Black |
