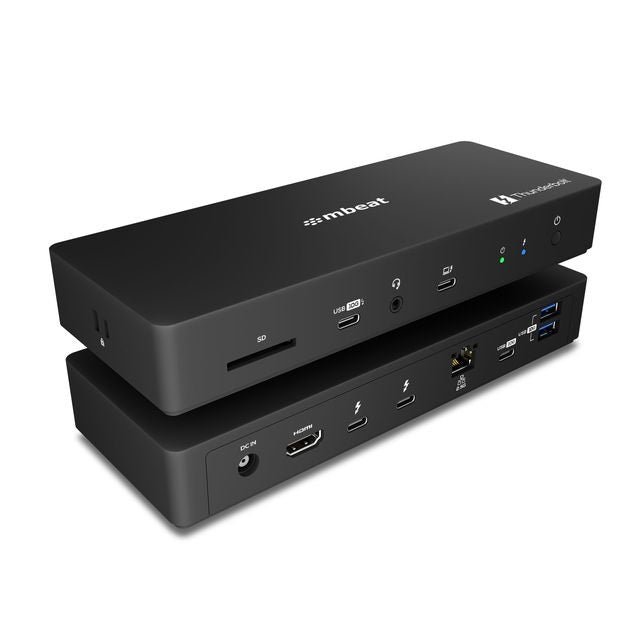

mbeat Thunderbolt™4 / USB4 Docking Station – 40Gbps, Dual 4K/8K, 96W PD

mbeat Thunderbolt™4 / USB4 Docking Station

The TB48 is a high-performance Thunderbolt™ 4 docking station designed for modern professional workflows. Delivering 40Gbps bandwidth, support for 8K or dual 4K displays, 96W laptop charging, 2.5GbE networking, and 12 essential ports, it replaces multiple adapters with a single, reliable connection. Built for speed, stability, and universal compatibility across Windows and macOS, it keeps your workspace streamlined and your devices running at peak performance.

• Thunderbolt™ 4 & USB4 certified — full 40Gbps bandwidth
• Dual 4K@60Hz extended desktop or single 8K@30Hz via HDMI 2.1
• Up to 96W USB-C PD 3.0 laptop charging — 150W adapter included
• 2.5GbE LAN, SD 4.0 card reader, Hi-Res 3.5mm audio
• 12 ports total — plug-and-play, no drivers required

SPECIFICATIONS
Interface
• Upstream: 1 × Thunderbolt™ 4 / USB-C port (Front,
supports up to 96W PD, 40Gbps)
• Downstream:
- 2 × Thunderbolt™ 4 / USB4 ports (Rear, data or video
output)
- 2 × USB-A 10Gbps (Rear, 5V/0.9A)
- 1 × USB-C 10Gbps (Rear, 5V/1.5A)
- 1 × USB-C 10Gbps (Front, 5V/3A)
• Video Output:
- 1 × HDMI 2.1
- 2 × Thunderbolt™ 4
• Maximum Resolution: 1 × 8K@30Hz or 2 × 4K@60Hz
• Ethernet: 1 × RJ45 (Rear, 10/100/1000/2500Mbps)
• Card Reader: 1 × SD 4.0 (Front, up to 985MB/s)
• Audio: Hi-Res 3.5mm Headset Jack (Front, 24bit / 96Hz)
• Security: K-Lock Slot for physical anti-theft security
• LED Indicators:
- Power LED: Green (power on)
- Thunderbolt™ 4 LED: Blue (active Thunderbolt™ connection)
• Power Type:
- DC Power Input: 150W (20V/7.5A)
- 150W DC Power Adapter Included
- PD Charging Output: USB-C PD 3.0 up to 96W (5V / 9V / 15V / 20V@4.8A) to host device

Supported Operating System
• Windows® 10
• macOS Big Sur 11.2 or later

Compatibility and Requirements
• Dual Extended Display Compatibility Alert for Apple MacBook: Dual display support depends on the MacBook’s processor, not the dock. MacBook Pro models with M1 Pro, M1 Max, M2 Pro, M2 Max, M3 Pro, or M3 Max chips support dual extended displays natively, whereas MacBook Air or MacBook Pro models with M1, M2, or M3 (Base) chips support only a single extended external display.
• Windows laptops with Thunderbolt™ 4 or USB4 generally support dual extended displays.

Product and Package:
• Product Dimensions: 19.9cm × 7.5cm × 3.1cm
• Product Weight: 0.26kg
• Cable Length: 100cm (USB-C / Thunderbolt™ data cable)
• Package Dimensions: 29.5cm × 14.5cm × 9cm
• Package Weight: 1.11kg
• Package Contents: Thunderbolt™ 4 Docking Station, 150W DC Power Adapter (Included), USB-C / Thunderbolt™ Cable (100cm), Instruction Manual, Product Registration Card
