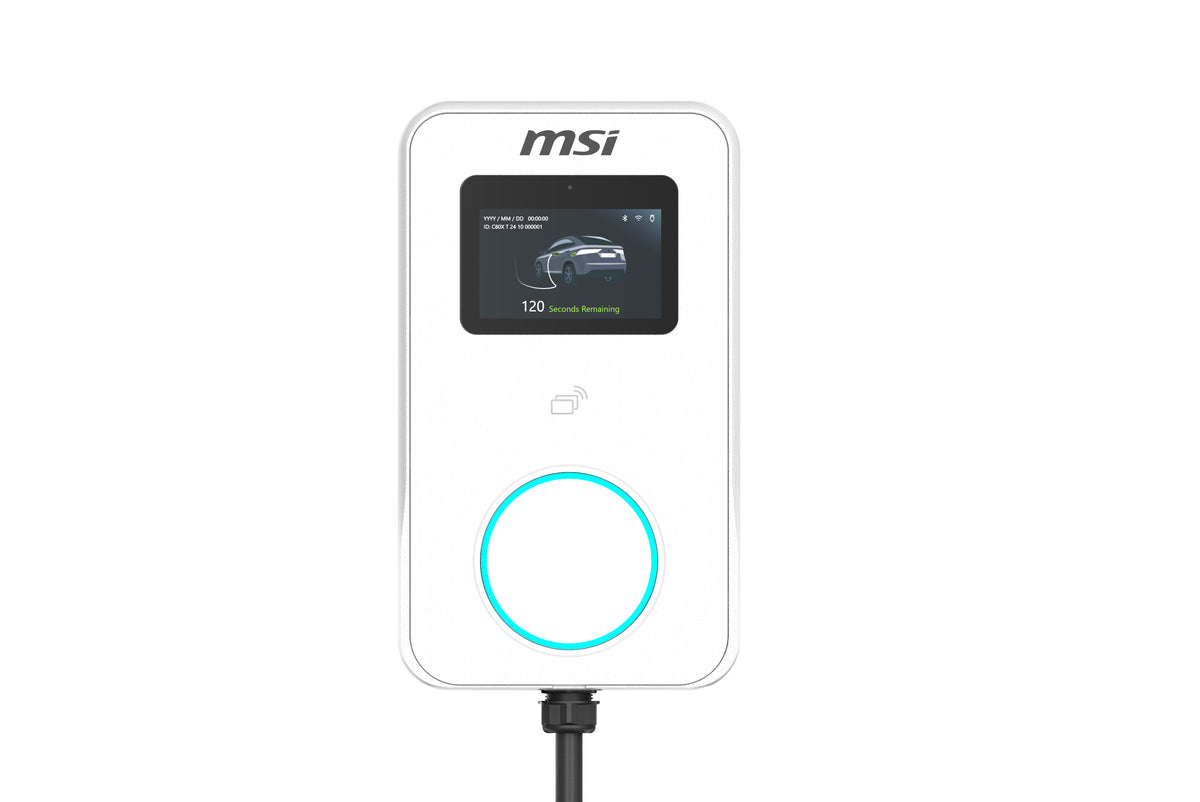

MSI Eco Premium Max(OCPP) 22kW-White, 3-phase 380-415V, 32A, WiFi, OCPP2.0.1

MSI Eco Premium Max(OCPP) 22kW-White, 3-phase 380-415V, 32A, WiFi, OCPP2.0.1, 5in screen, LED circle, app, RFID opt, 4G opt, LAN opt, IP65, 2yr wty

Eco Premium
•Up to 22 kW with 3-phase power.
•5 inch screen for charging status and instructions.
•Seamless plug & charge to enhance user experience.
•Both tethered and socket options.

The Eco Series
Charging Power
7/11kW (200 - 240Vac, 32/48 A, 1-phase)
22kW (380 - 415 Vac, 32 A, 3-phase)

Dimension
W 20.4 x H35.1 x D 11.3 cm

Mobile App
Yes

RFID Card
Option

Payment
Plug & charge (option)

Display
LED circle lighting, 5 inch screen

WIFI
Yes

LAN
Option

4G LTE
Option

Charging Protocol
OCPP 2.0.1

Protection
IP65, IK08: IP67 (charging cable)

Specifications
