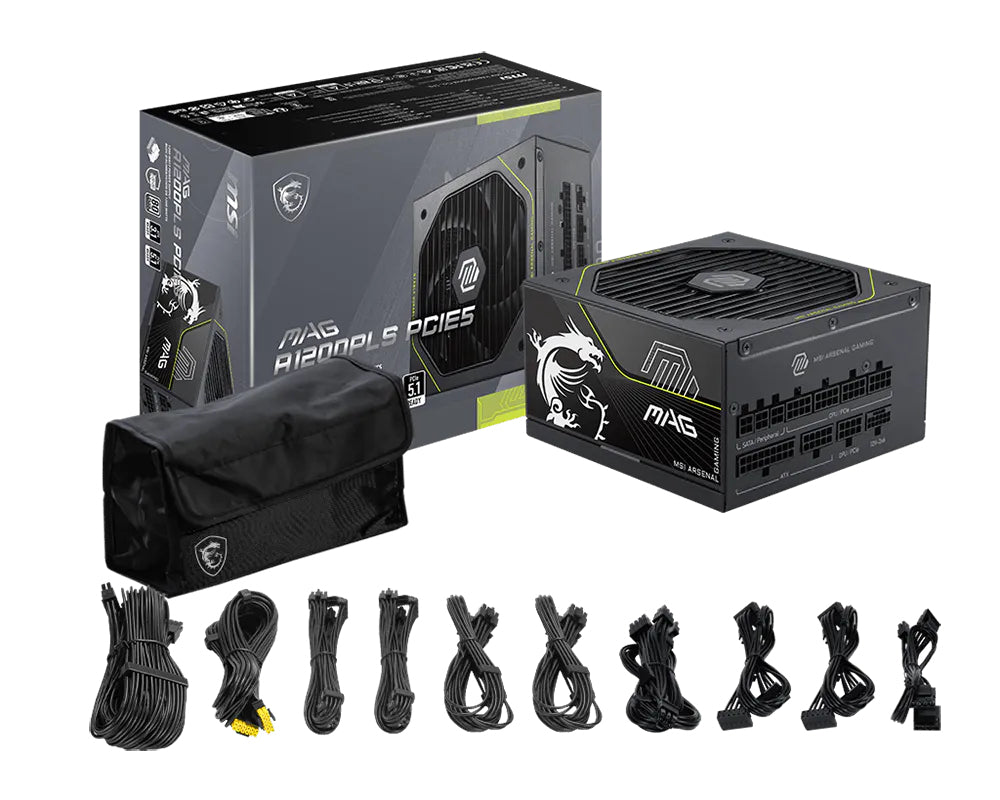

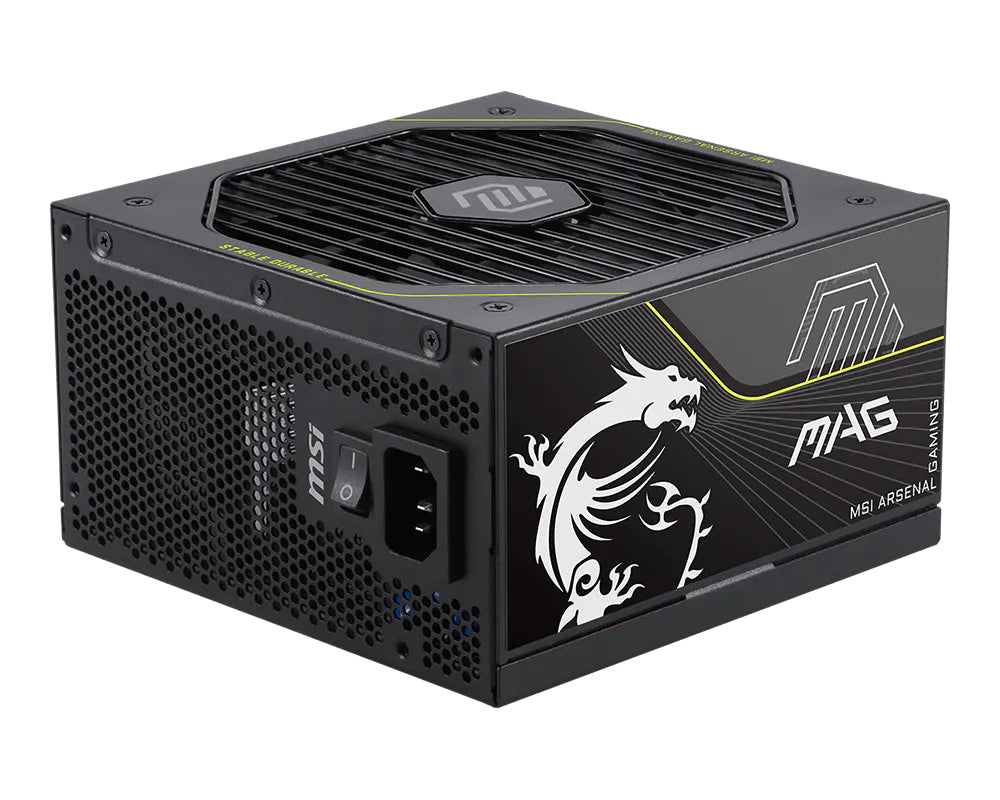

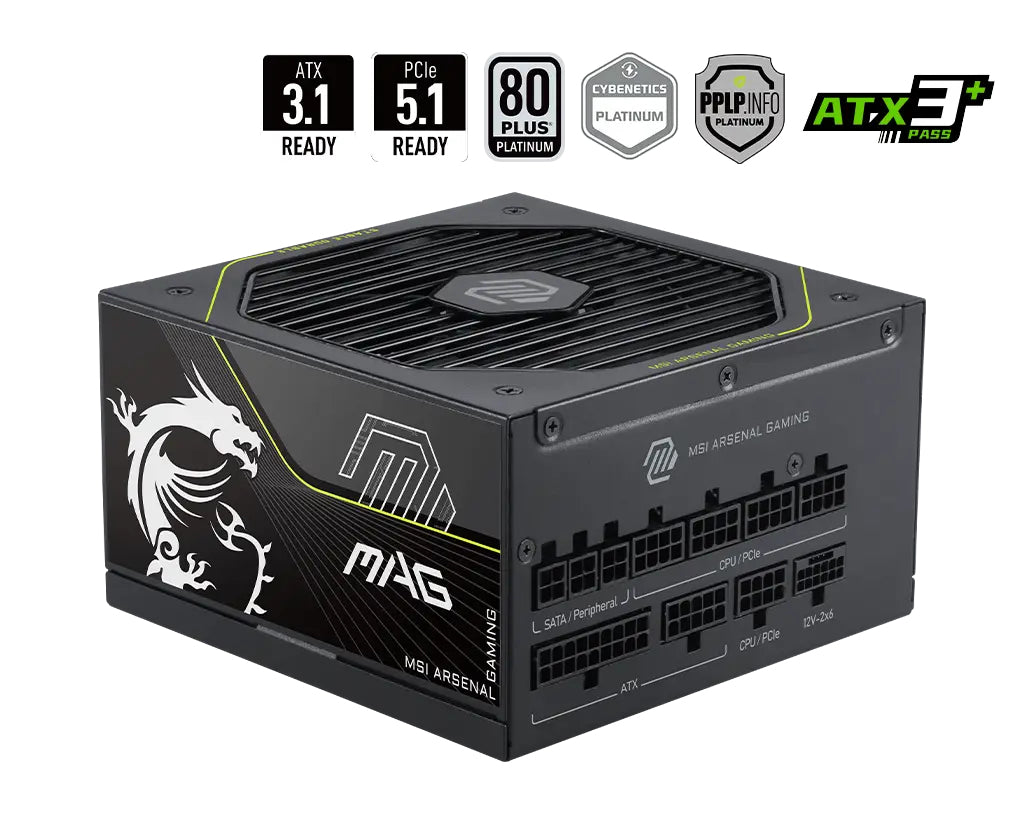

MSI MAG A1200PLS PCIE5, 1200W, 80 PLUS Platinum, Fully Modular, ATX, Native
MSI MAG A1200PLS PCIE5, 1200W, 80 PLUS Platinum, Fully Modular, ATX, Native
Couldn't load pickup availability
MSI MAG A1200PLS PCIE5, 1200W, 80 PLUS Platinum
MAG A1200PLS PCIE5
•Premium protection, GPU Safeguard and Fan Safeguard
•Supports Nvidia® GeForce RTXTM 50 series graphics cards
•Native 12V-2x6 connector
•Dual-color 12V-2x6 cable
•80 PLUS Platinum certified
•Optimized the sound level
•Main 105oC capacitor
•Embossed Jacket Cables, the cables are more bending and routing
•Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
SPECIFICATION
Efficiency Rating 80 PLUS PLATINUM
Power Watt 1200W
Modular Fully Modular
Form Factor ATX
Dimensions (DxWxH) 150x150x86 mm
PFC Type Active PFC
Input Voltage Range 100~240 VAC
Input Frequency Range 50~60 Hz

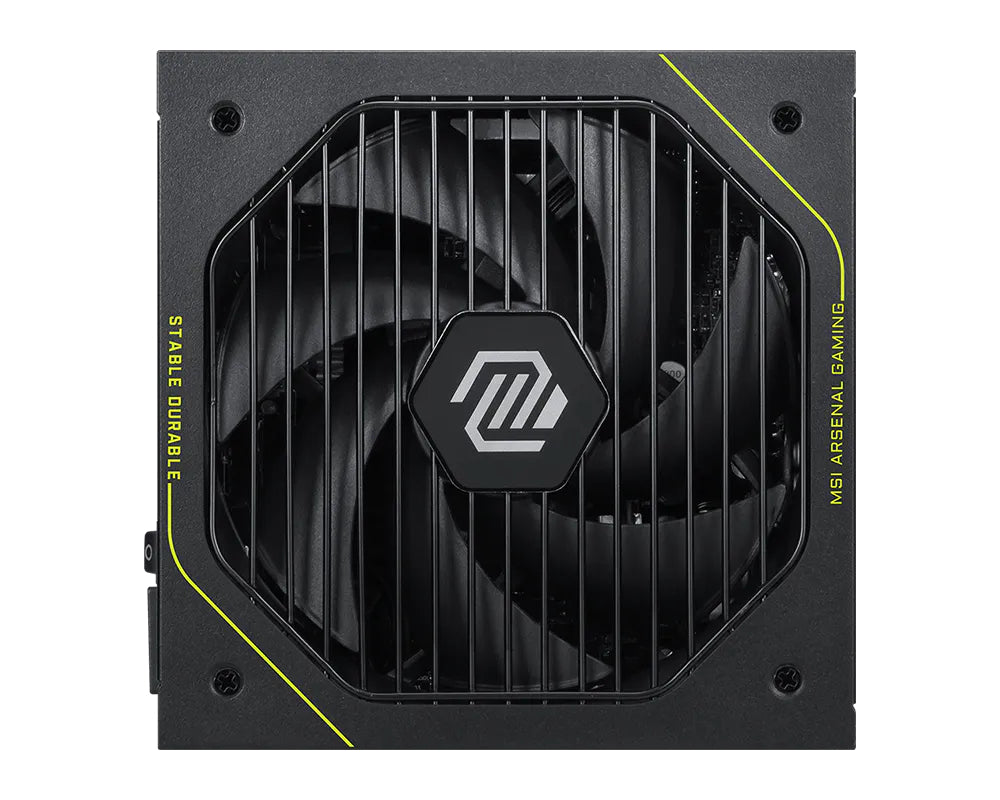

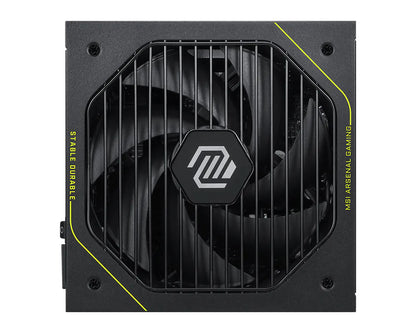

Fan
Size: 135mm
Bearing: FDB
Protection OVP / OCP / OTP / OPP / SCP / UVP / SIP / NLO

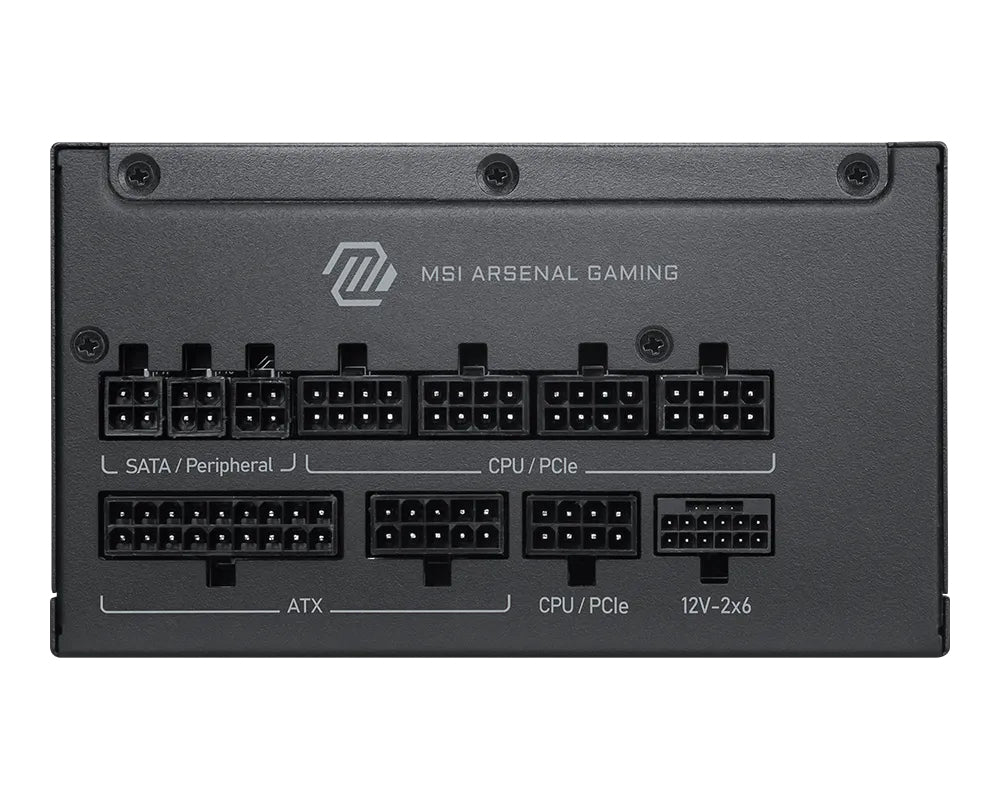

Connector
1 x Motherboard (24 pin)
1 x CPU (4+4 pin)
1 x CPU (8 pin)
1 x PCIe 5 (12+4 pin) / 600W
4 x PCIe (6+2 pin)
6 x SATA
3 x Peripheral (4 pin)
Features
- Premium protection, GPU Safeguard and Fan Safeguard
- Supports Nvidia® GeForce RTXTM 50 series graphics cards
- Native 12V-2x6 connector
- Dual-color 12V-2x6 cable
- 80 PLUS Platinum certified
- Optimized the sound level
- Main 105oC capacitor
- Embossed Jacket Cables, the cables are more bending and routing
- Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
Specifications
| Brand | MSI |
|---|---|
| Model | MAG A1200PLS PCIE5 |
| Total power | 1200 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 100 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 100 A |
| Max output current (+5Vsb) | 3 A |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 3 |
| CPU power connector (4+4 pin) | Yes |
| ATX Power connector (24-pin) | No |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive connector | No |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Illumination | No |
