MSI PRO B850M-A WIFI PZ

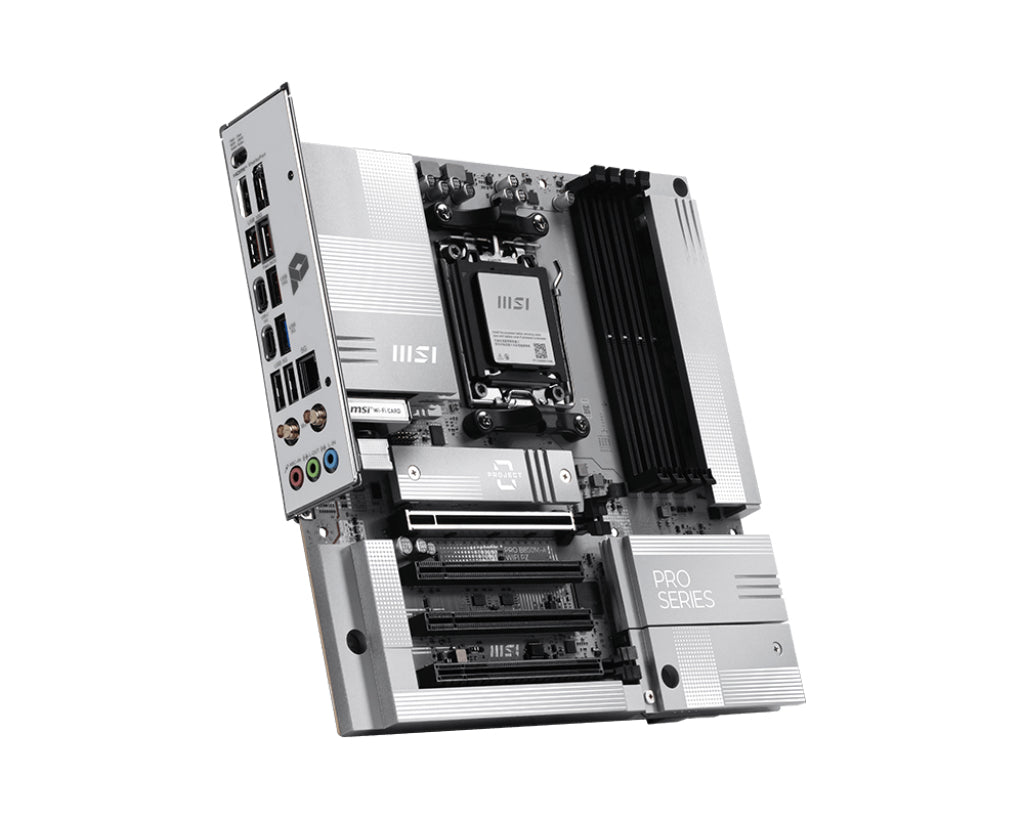

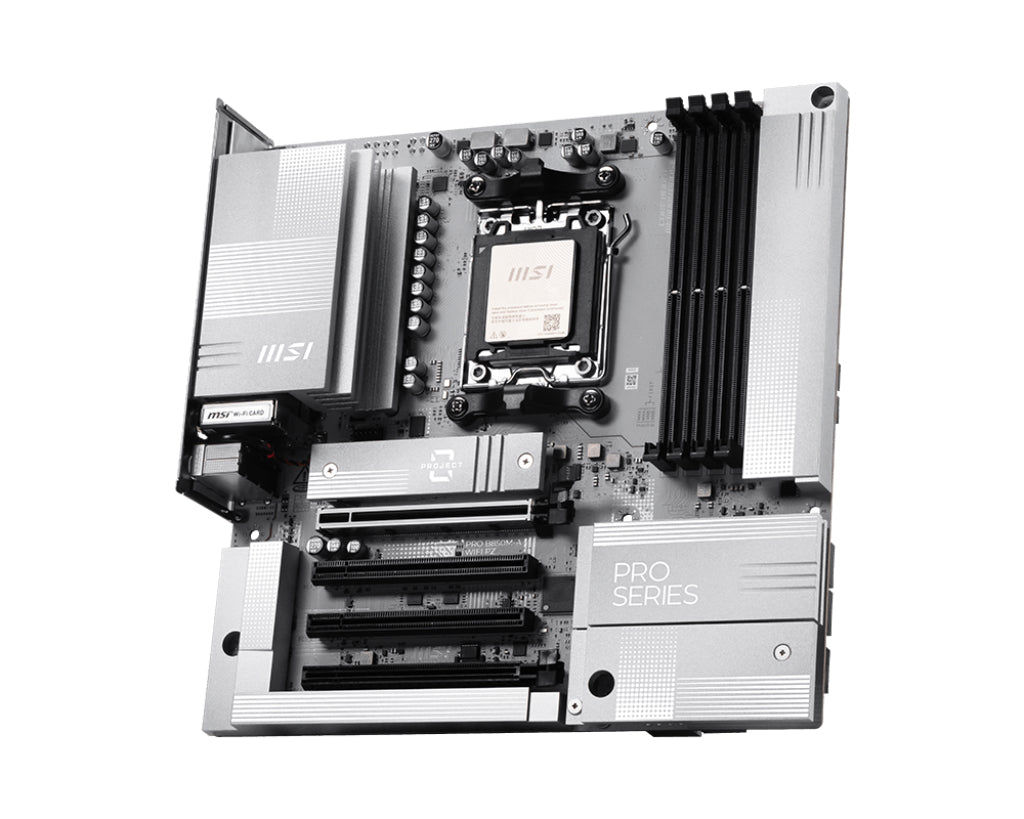

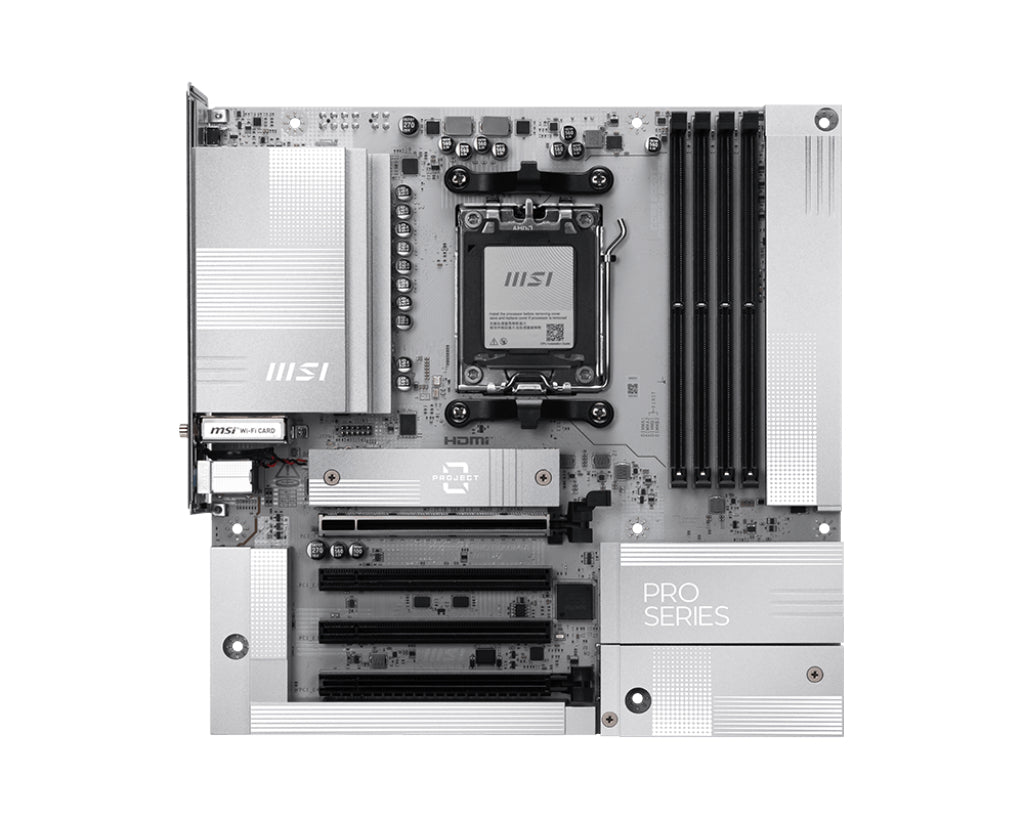

PRO B850M-A WIFI PZ offers a sleek design with a harmonious silver-white color scheme that perfectly matches white PC builds. Its innovative back-connect design reduces the complexity of cable management, resulting in an aesthetically pleasing appearance for the system. It is engineered with many exclusive features of MSI, Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.

SPECIFICATIONS
Chipset AMD B850
CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5

Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6000+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

Onboard Graphics
1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*

Slot
4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

Audio
Realtek® ALC897
7.1-Channel High Definition Audio

Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

M2_2 slot
• Supports up to PCIe 4.0 x4
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

RAID
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices

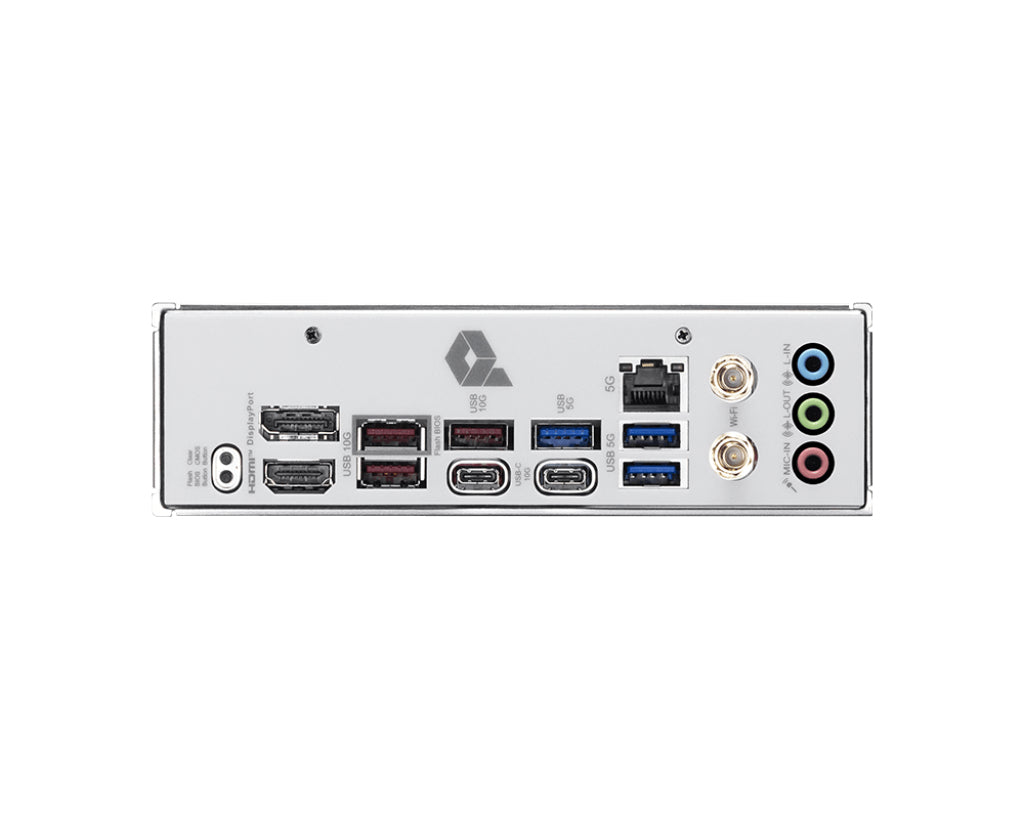

USB
4x USB 2.0 (Front)
3x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
2x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)

LAN Realtek® 8126 5G LAN

WIRELESS LAN & BLUETOOTH Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

LED FEATURE
4x EZ Debug LED
1x EZ Memory Detection LED

OPERATING SYSTEM Support for Windows® 11 64-bit

PCB Info
Back-connect mATX
243.84mmx243.84mm

Features

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
• Ultra Performance: Direct 8+2+1 Power System 60A SPS, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
• EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
• 5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
