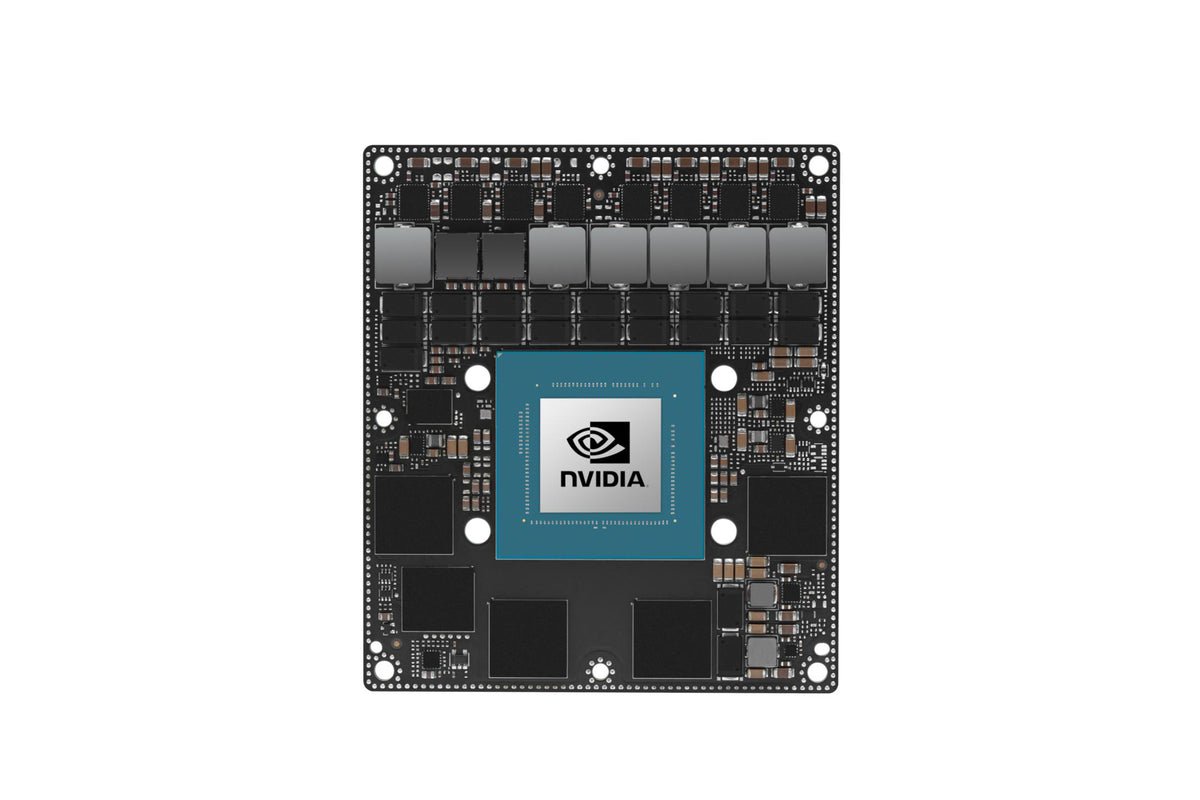

NVIDIA Jetson AGX Orin 32GB Module

The NVIDIA Jetson AGX Orin 32GB is a production embedded module for AI-powered robotics, machine vision and autonomous equipment. It provides a balanced combination of AI performance, memory, power efficiency and high-speed connectivity.
The module enables advanced AI workloads to run locally near connected equipment and sensors.
Click here to contact our dedicated AI sales team about Jetson
For more product information, please click here

Features

• AI Performance: 200 TOPS (INT8)
• GPU: NVIDIA Ampere architecture with 1792 NVIDIA CUDA cores and 56 Tensor Cores
• Max GPU Freq: 939 MHz
• CPU: 8-core Arm Cortex-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
• CPU Max Freq: 2.2 GHz
• DL Accelerator: 2x NVDLA v2.0
• DLA Max Frequency: 1.4 GHz
• Vision Accelerator: PVA v2.0
• Memory: 32GB 256-bit LPDDR5 204.8 GB/s
• Storage: 64GB eMMC 5.1
• CSI Camera: Up to 6 cameras (16 via virtual channels) 16 lanes MIPI CSI-2 D-PHY 2.1 (up to 40Gbps) | C-PHY 2.0 (up to 164Gbps)
• Video Encode: 1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) H.264, AV1
