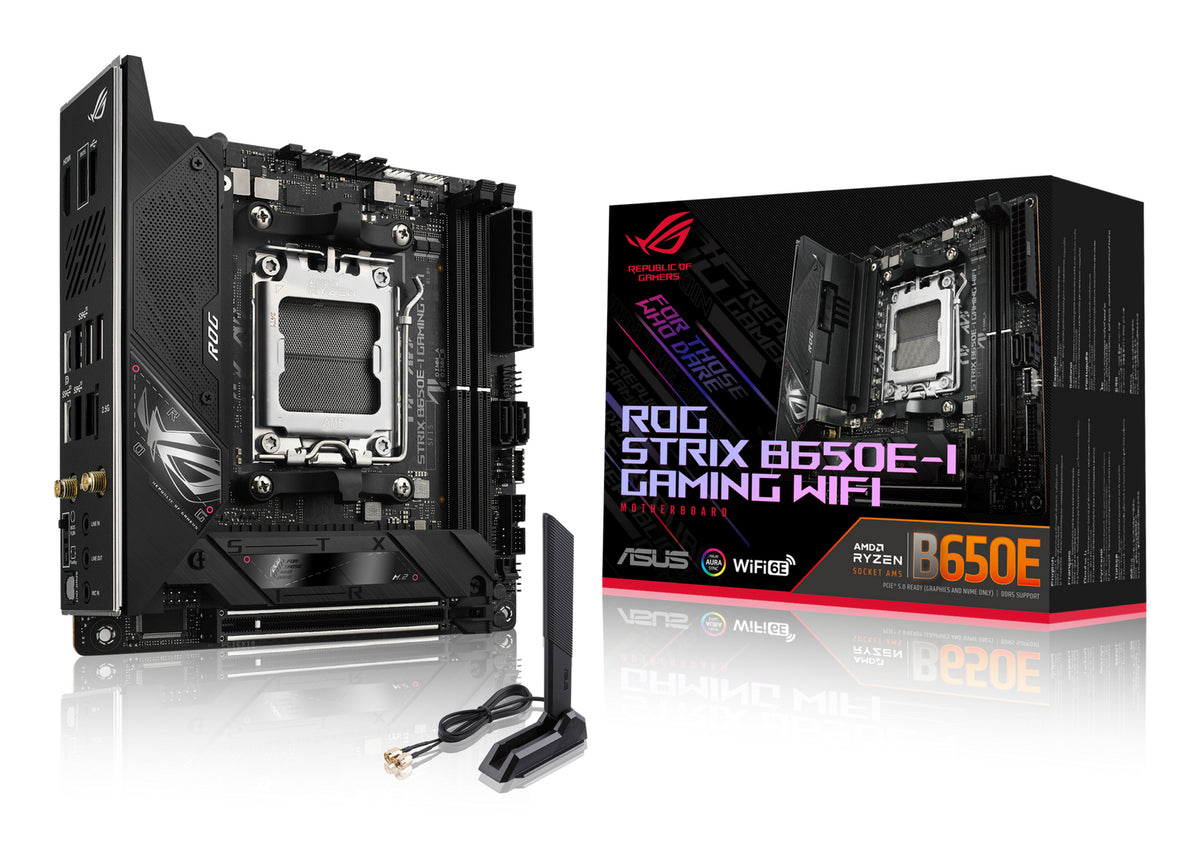

ASUS AMD B650E ROG STRIX B650E-I GAMING WIFI (AM5) Mini-ITX Motherboard, DDR5

ASUS AMD ROG STRIX B650E-I GAMING WIFI (AM5)

Don’t be fooled by its flyweight frame; the Strix B650E-I packs walloping performance! With a jacked VRM and pumped with both DDR and PCIe 5, it’s a perfect partner for Ryzen 7000, particularly in stealthy SFF builds. This platform delivers the power and connectivity that advanced AI PC applications demand.

SPECIFICATIONS
Model
ROG STRIX B650E-I GAMING WIFI

News & Updates
Socket AM5

CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to for CPU support list.

Chipset
AMD B650

Memory
2 x DIMM, Max. 96GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/
6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Graphics
1 x HDMI® port***
1 x USB3.2 Gen2 port supports USB Type-C® display outputs****
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@60Hz as specified in display outputs
***Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot*
* Please check the PCIe bifurcation table on the support site (
- To ensure compatibility of the device installed, please refer to for the list of supported peripherals.

Storage
Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
2 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1 and SATA RAID 0/1.

Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.2**
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB
Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
5 x USB 3.2 Gen 2 ports (4 x Type-A + 1 x USB Type-C®)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 5 ports)
1 x USB 3.2 Gen 2 connector
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports

Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback

Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- LED-illuminated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
*The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

BIOS
256 MbFlash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Operating System
Windows® 11 64-bit, Windows 10 64-bit

Form Factor
Mini-ITX Form Factor
6.7 inch x 6.7 inch (17 cm x 17 cm)
