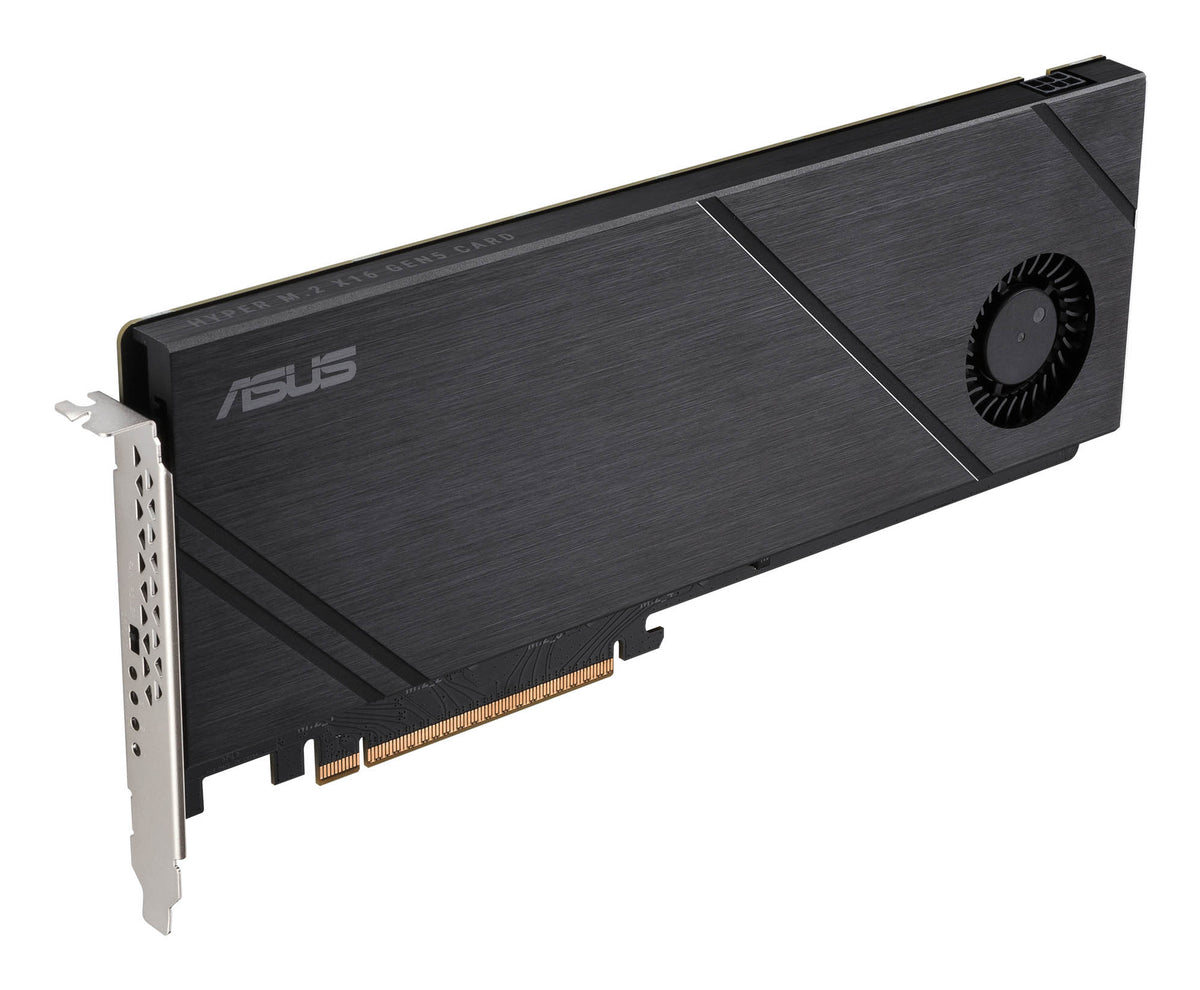

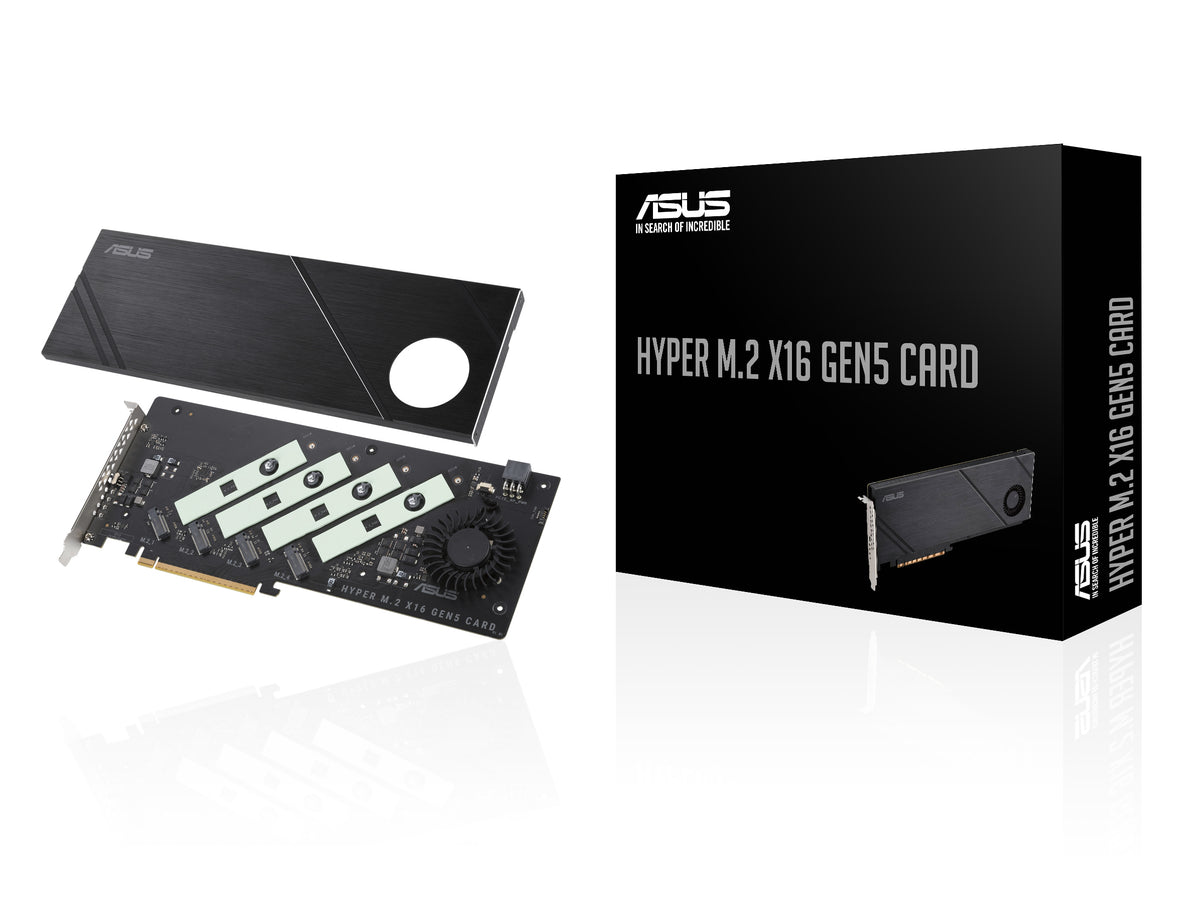

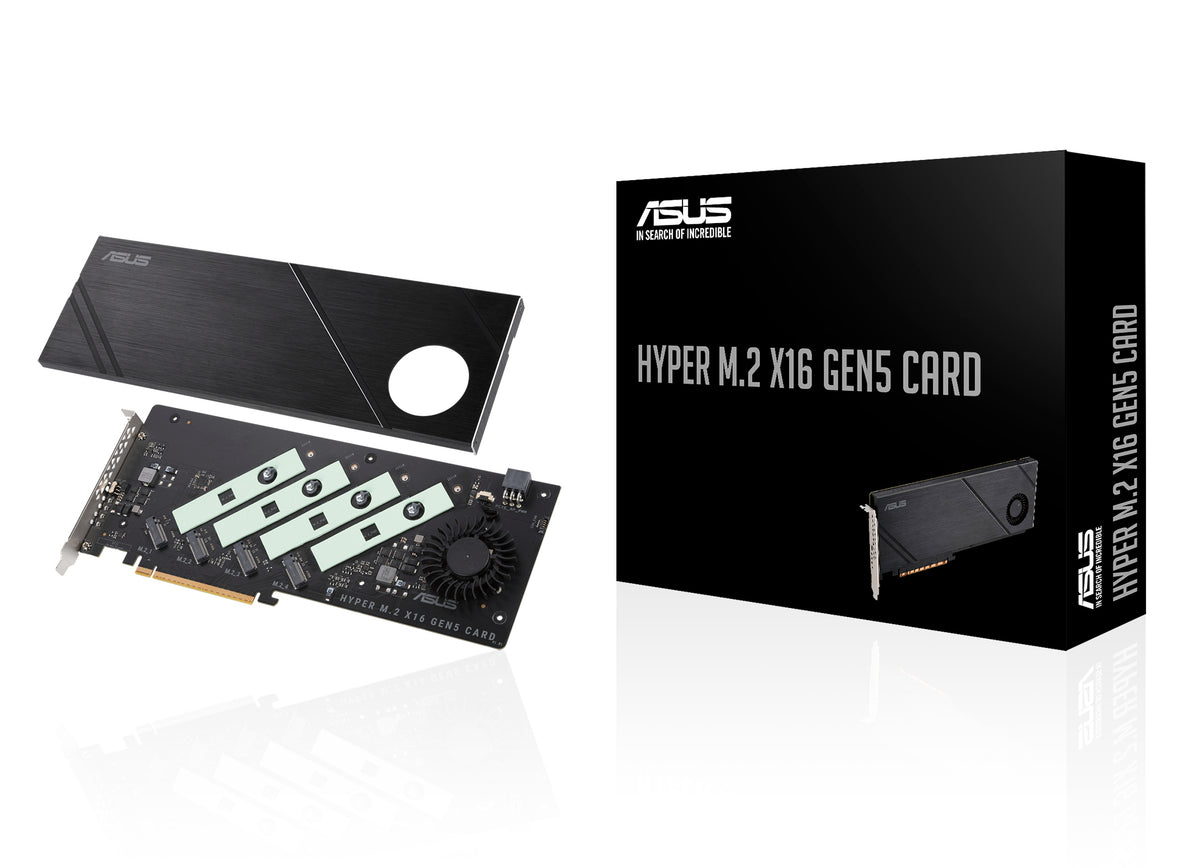

ASUS HYPER M.2 X16 GEN5 CARD (PCIe 5.0/4.0) Supports up to four NVMe M.2

ASUS Hyper M.2 x16 Gen5 Card (PCIe 5.0/4.0) supports up to four NVMe M.2 (2242/2260/2280/22110) devices at up to 512 Gbps for RAID functions across diverse CPU platforms

•1 x 6-pin PCIe power connector and two-phase power solution with up to 14-watt output to support the latest NVMe drives

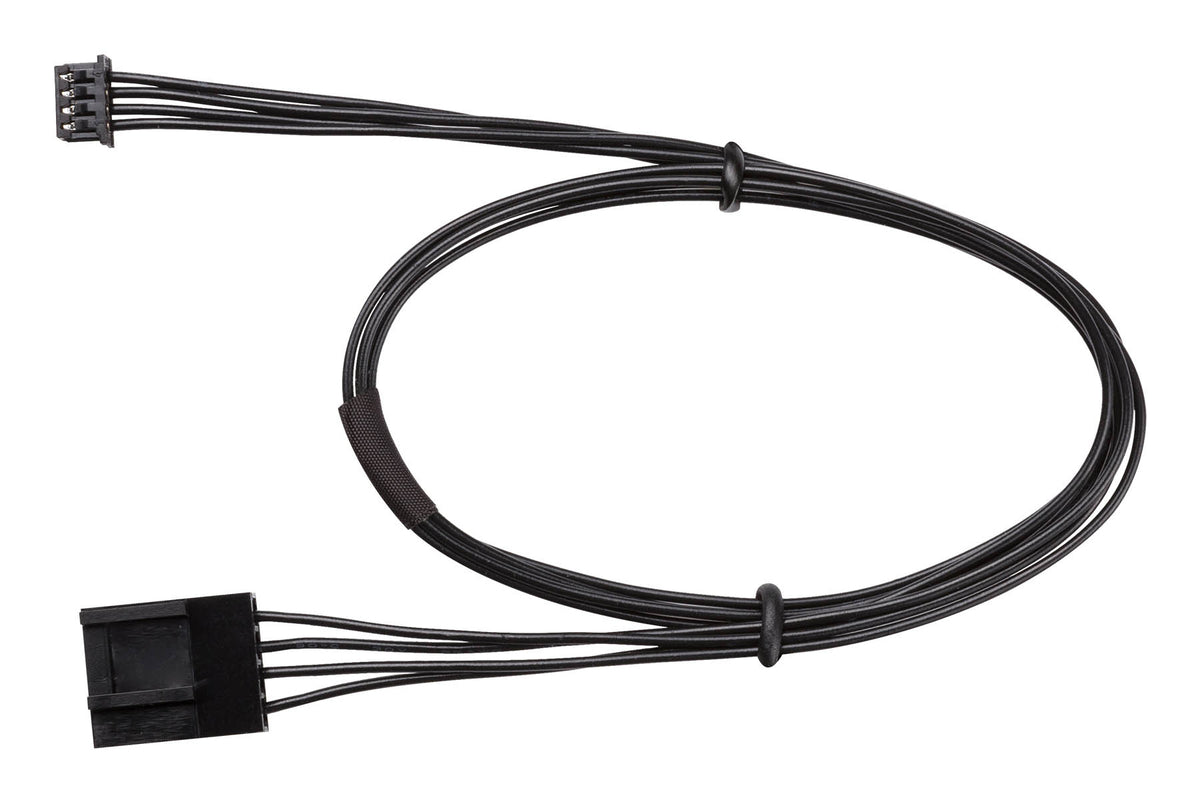

•Large heatsink and active fan reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability; additional fan cable connects to the motherboard's chassis fan header to allow the motherboard to control and regulate fan speed

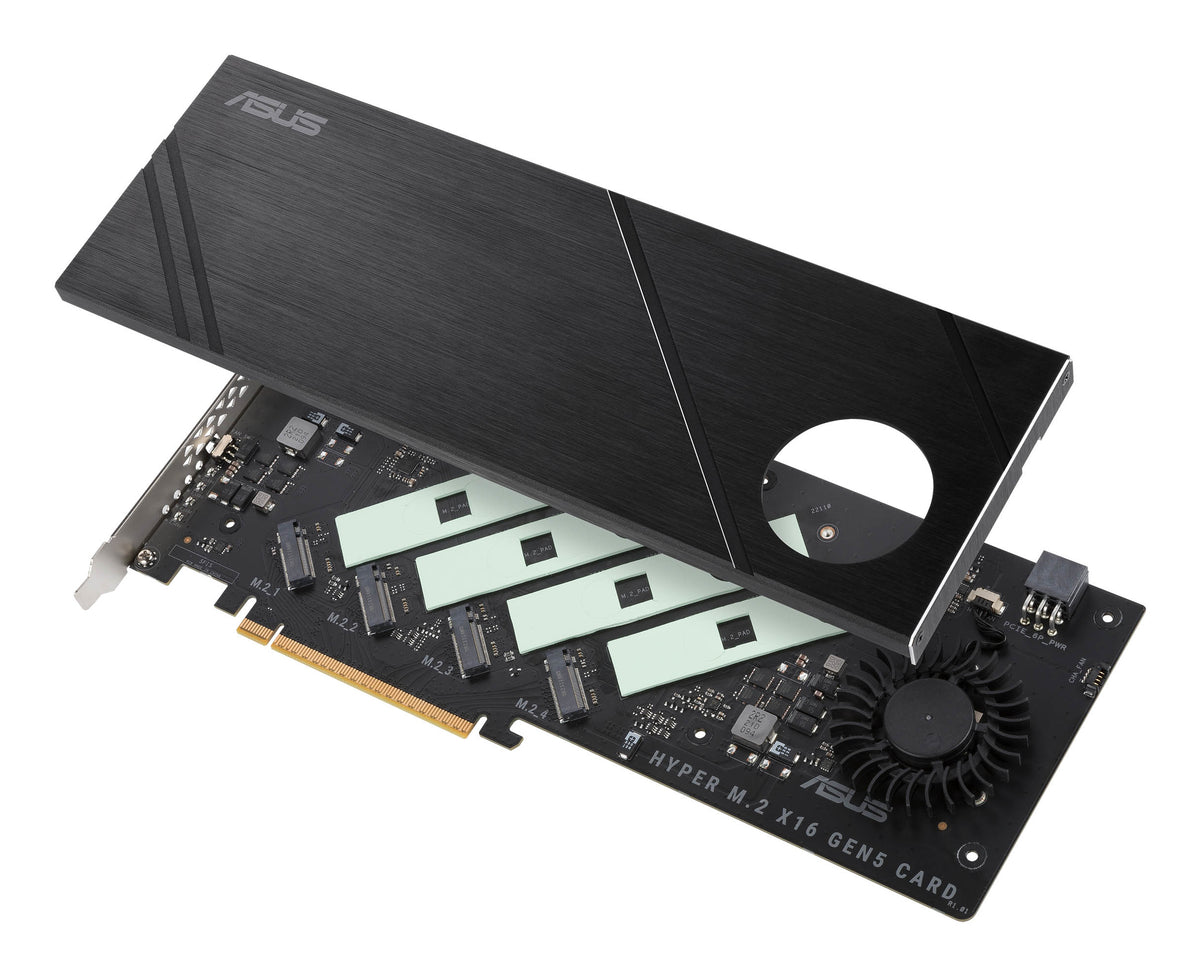

•Adapted server-grade PCB supports up to four PCIe 5.0/4.0 M.2 drives, with up to 512 Gbps bandwidth for smooth data transfers

SPECIFICATION
Model Hyper M.2 x16 Gen5 Card

Spec
PCIe 5.0 x16 interface, support data transfer rates up to 512 Gbps.
4 x M.2 slots (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0)*
* Supports PCIe M.2 storage devices only.
1 x M.2 FAN Power Switch
4 x M.2 access LEDs
Active fan with heatsink, support fan control from MB chassis fan header

Dimensions 29 (L)*12.2(W) *1.5(H)cm

Features

• 1 x 6-pin PCIe power connector and two-phase power solution with up to 14-watt output to support the latest NVMe drives
• Large heatsink and active fan reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability; additional fan cable connects to the motherboard's chassis fan header to allow the motherboard to control and regulate fan speed
• Adapted server-grade PCB supports up to four PCIe 5.0/4.0 M.2 drives, with up to 512 Gbps bandwidth for smooth data transfers
