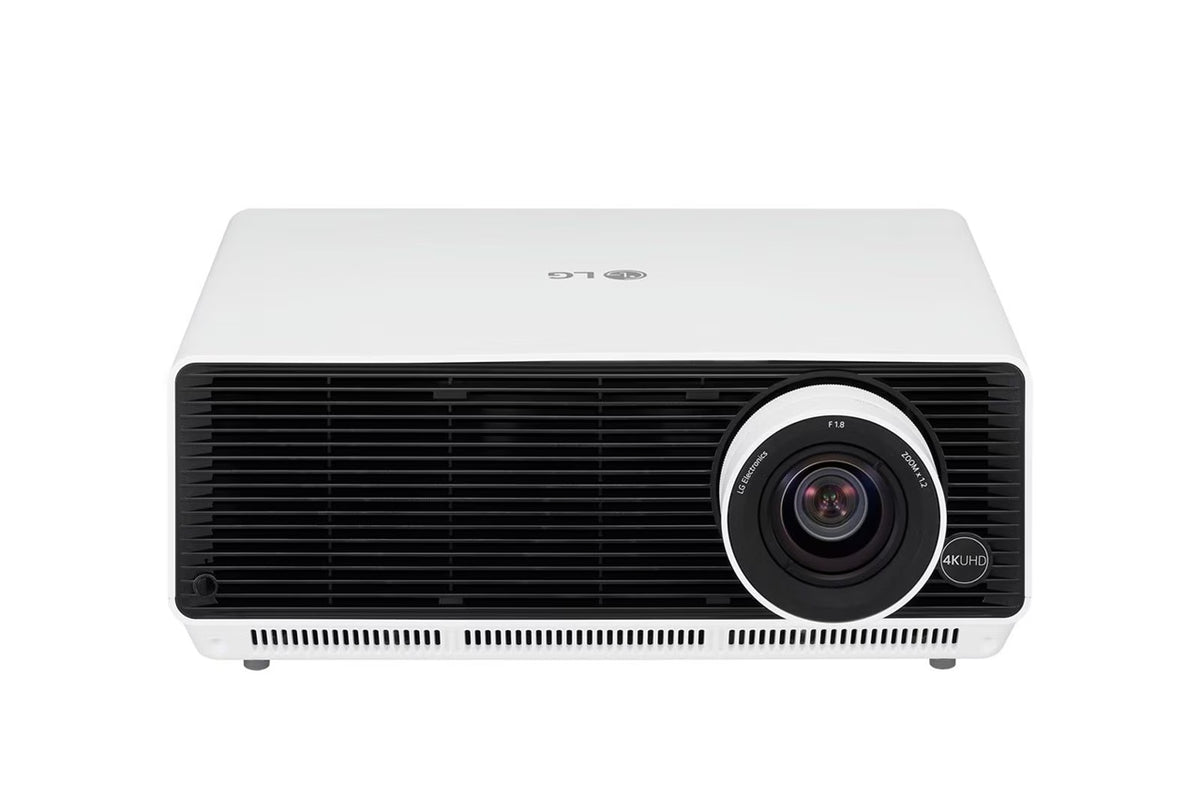

LG ProBeam 4K UHD Laser Projector, 8.3 Mega Pixel, 3840x2160, 5,000 ANSI

LG ProBeam 4K UHD Laser Projector, 8.3 Mega Pixel, 3840x2160, 5,000 ANSI Lumens, Short Throw, Lens shift H ±20%, V ±50%/Zoom x 1.2

Key Features
•Laser 4K UHD
•8.3 Mega pixels (3840x2160)
•5,000 ANSI Lumens
•Short Throw
•Lens shift H ±20%, V ±50% / Zoom x 1.2
•SuperSign / LG Connected Care

SPECIFICATION
PROJECTION SYSTEM
Projection System
DLP

NATIVE RESOLUTION
Native Resolution
4K UHD (3840 x 2160)3)

BRIGHTNESS (ANSI LUMEN)
Brightness (ANSI Lumen)
5000

CONTRAST RATIO
Contrast Ratio
3,000,000:1 ↑

NOISE
Energy Saving Min. (Bright)
29

Energy Saving Med.
27

Energy Saving Off (Max)
26

UNIFORMITY
Uniformity (JBMMA 9 Point)
0.85

CHANGEABLE F#
Changeable F#
X

PROJECTION LENS
Focus (Auto / Manual)
Manual

Zoom
1.2x

PROJECTION IMAGE
Screen Size
40' ~ 300'

Standard (lens to wall)
Wide 2017 /Tele 2454 (100'')

Throw Ratio
0.94 - 1.14

LENS SHIFT
Lens Shift
O ( Horiz ± 20% / Vert ± 50% )

PROJECTION OFFSET
Projection Offset
1

LIGHT SOURCE
Type
Laser (LD + P/W)

Life High Brightness
20,000 Hrs

ASPECT RATIO
Aspect Ratio Control
Full / Original

Panel Aspect Ratio Control
16:6 / 16:9 / 16:10 / 21:9 / 4:3

SOUND
Output
10W (5W+5W)

Dolby Surround Audio
X

DTS-HD
X

Clear Voice
○ (Clear Voice lll)

SIZE
Net Size (mm) (W x D x H)
370 x 290 x 155.7 370 x 290 x 143.7 (Without Leg)

Gross size (mm) (W x D x H)
580 x 441 x 273

WEIGHT
Net Weight (kg or g)
9,7Kg

Gross Weight (kg or g)
11.5KG

POWER
Power Consumption (Max.)
400W

Stand-by Power
0.5W↓

Power Supply
100V – 240V @ 50~60 Hz (PSU Built-in)

TEMPERATURE
Operation Temperature
0 ~ 40℃

INPUT SIGNAL COMPATIBILITY
Digital(HDMI)
Up to 4K (4096x2160) (60Hz, 50Hz, 24Hz)

INPUT/OUTPUT TERMINALS
Audio out
○(Phone jack)

RS-232C(in)
1

RS-232C(out)
1

IP control
○

RJ45
1

HDMI (in)
2

USB Type-A
2 (USB2.0)

HDMI (in)
2

USB Type-A
2 (USB2.0)
