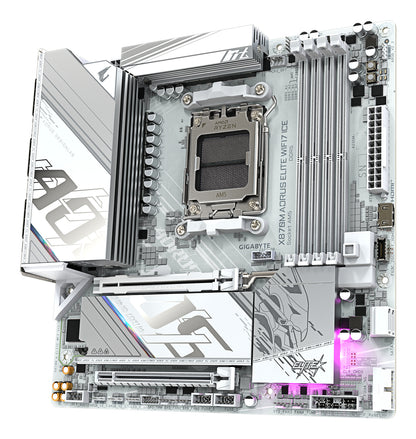

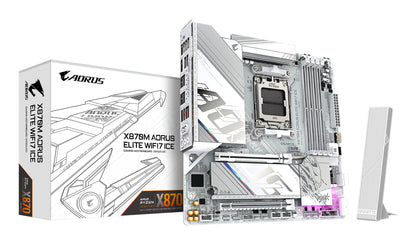

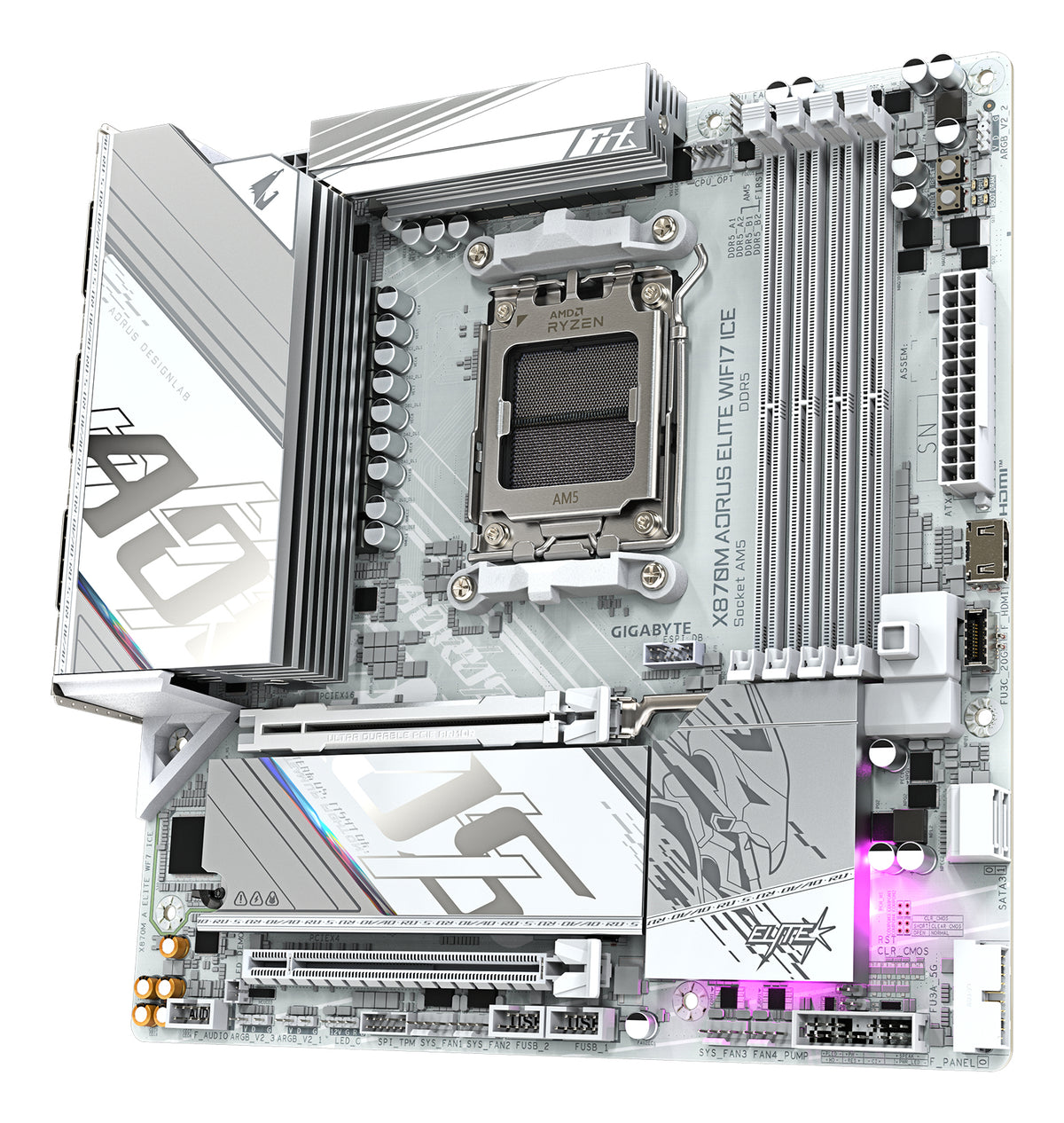

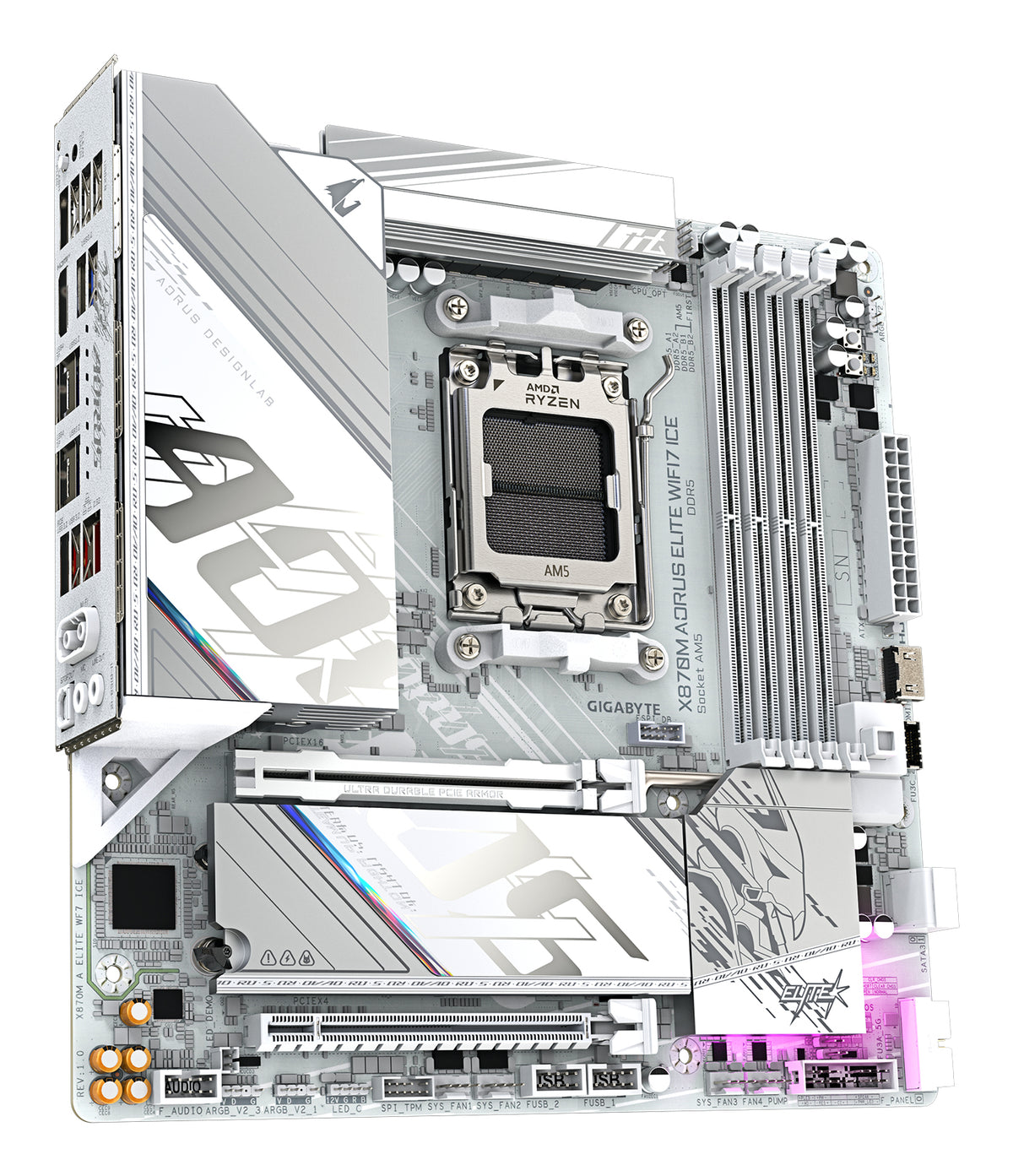

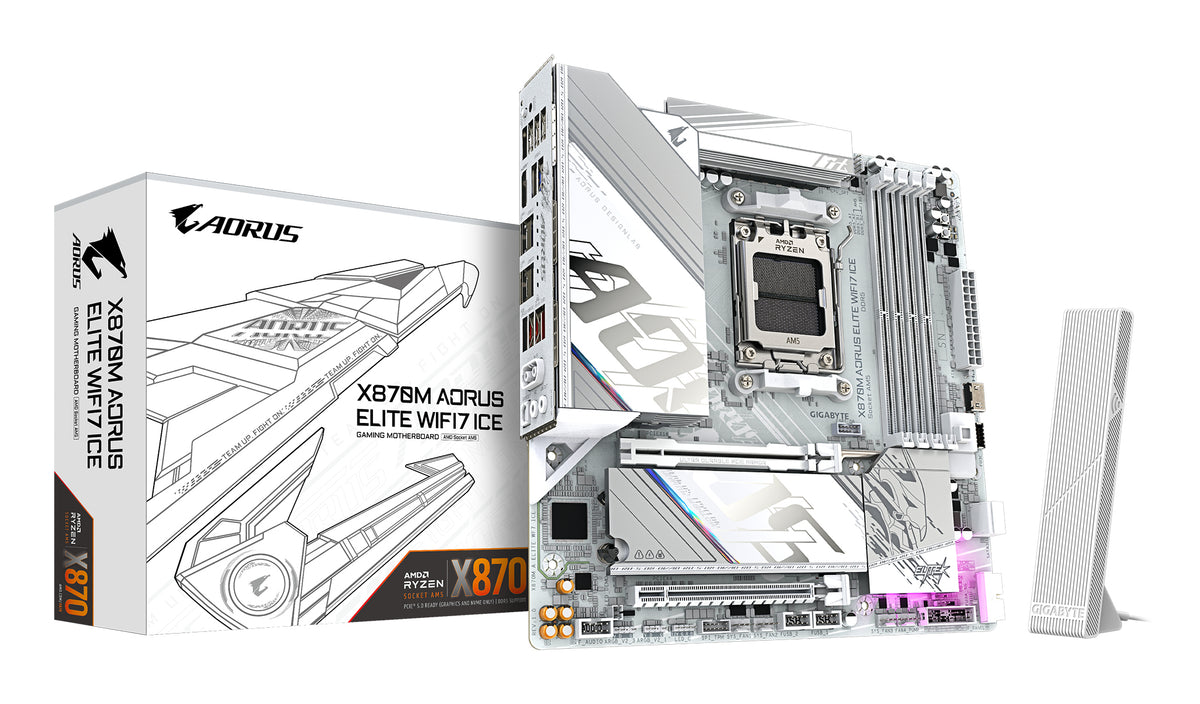

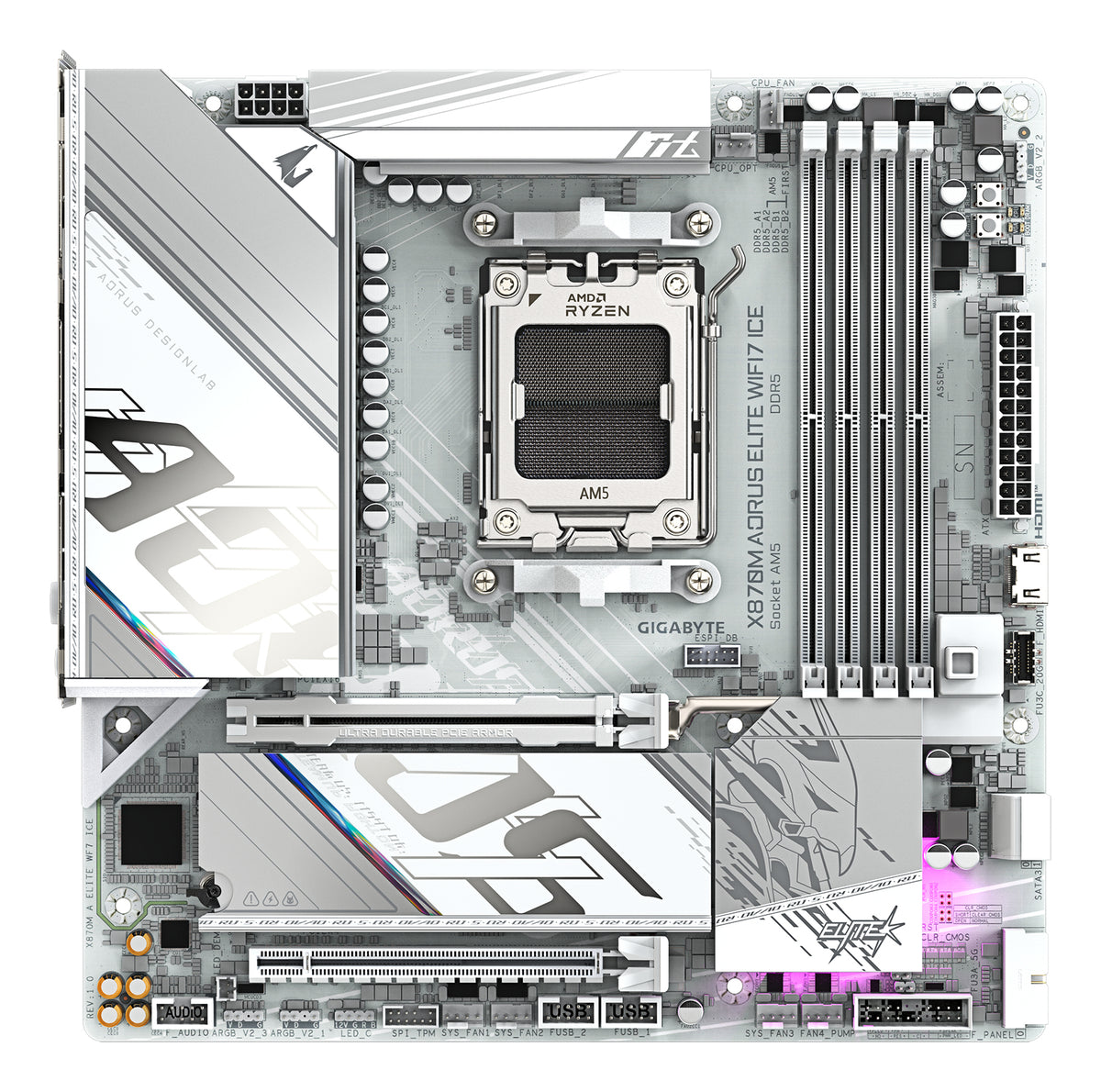

Gigabyte X870 AM5 ATX, Ryzen 9000/8000/7000, 4×DDR5 256GB, PCIe 5.0 M.2, USB4
Gigabyte X870 AM5 ATX, Ryzen 9000/8000/7000, 4×DDR5 256GB, PCIe 5.0 M.2, USB4
无法加载取货服务可用情况
Gigabyte X870 AM5 ATX, Ryzen 9000/8000/7000, 4×DDR5 256GB, PCIe 5.0 M.2, USB4, Wi-Fi 7, BT 5.4, 5GbE LAN, ALC1220, HDMI, Win11 64-bit
CPU
AMD Socket AM5
Chipset
AMD X870
Memory
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Onboard Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
Audio
Realtek® ALC1220 CODEC
LAN
Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Realtek® Wi-Fi 7
I/O Controller
iTE® I/O Controller Chip
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Bundled Software
Norton® Internet Security (OEM version)
Operating System
Support for Windows 11 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Features
- X3D Turbo Mode: Unleash new era gaming performance
- AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Digital twin 14+2+2 phases VRM solution
- Dual Channel DDR5: DDR5 OC up to 8200MT/s. 4*DIMMs with AMD EXPO Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- D5 Bionic Corsa for Infinite Memory Performance
- EZ-Latch: PCIe and M.2 slots with Quick Release & Screwless Design
- Ultra-Fast Storage: 2*M.2 slots, including PCIe 5.0 x4
- Fast Networking: 2.5GbE LAN & Wi-Fi 7

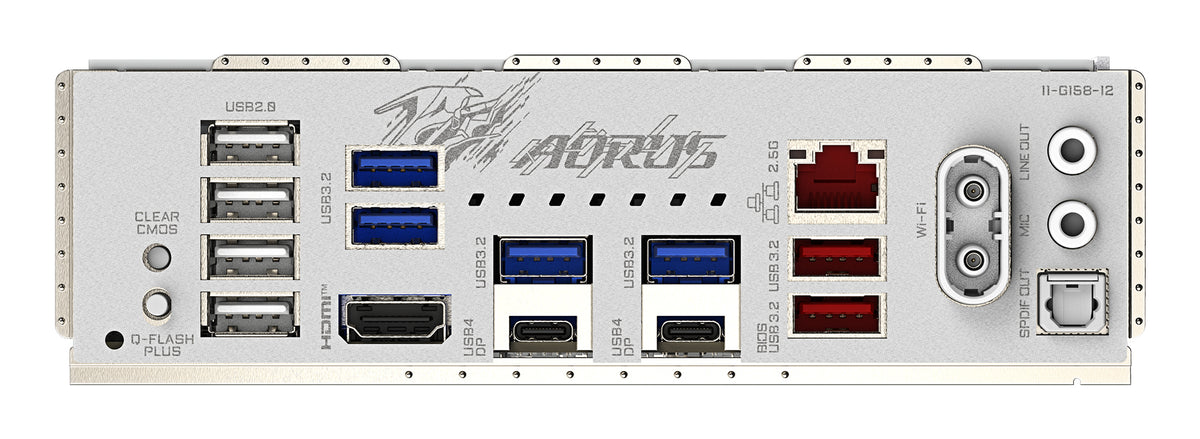

- Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
Specifications
| Brand | Gigabyte |
|---|---|
| Model | X870M A ELITE WF7 ICE |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz |
| Supported memory clock speed (max) | 8200 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Maximum internal memory per slot | 64 GB |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| Number of HDDs supported | 2 |
| Number of storage drives supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| HDCP version | 2.3 |
| DirectX version | 12.0 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 2 |
| Front panel audio connector | Yes |
