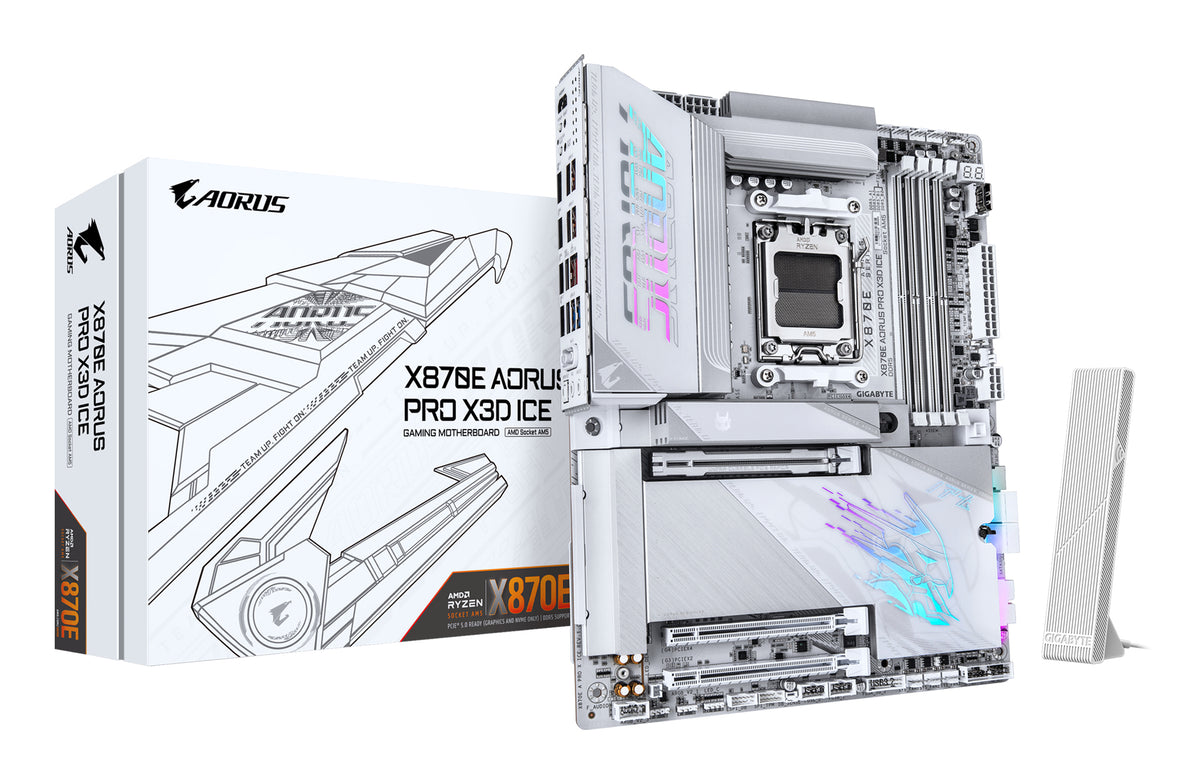

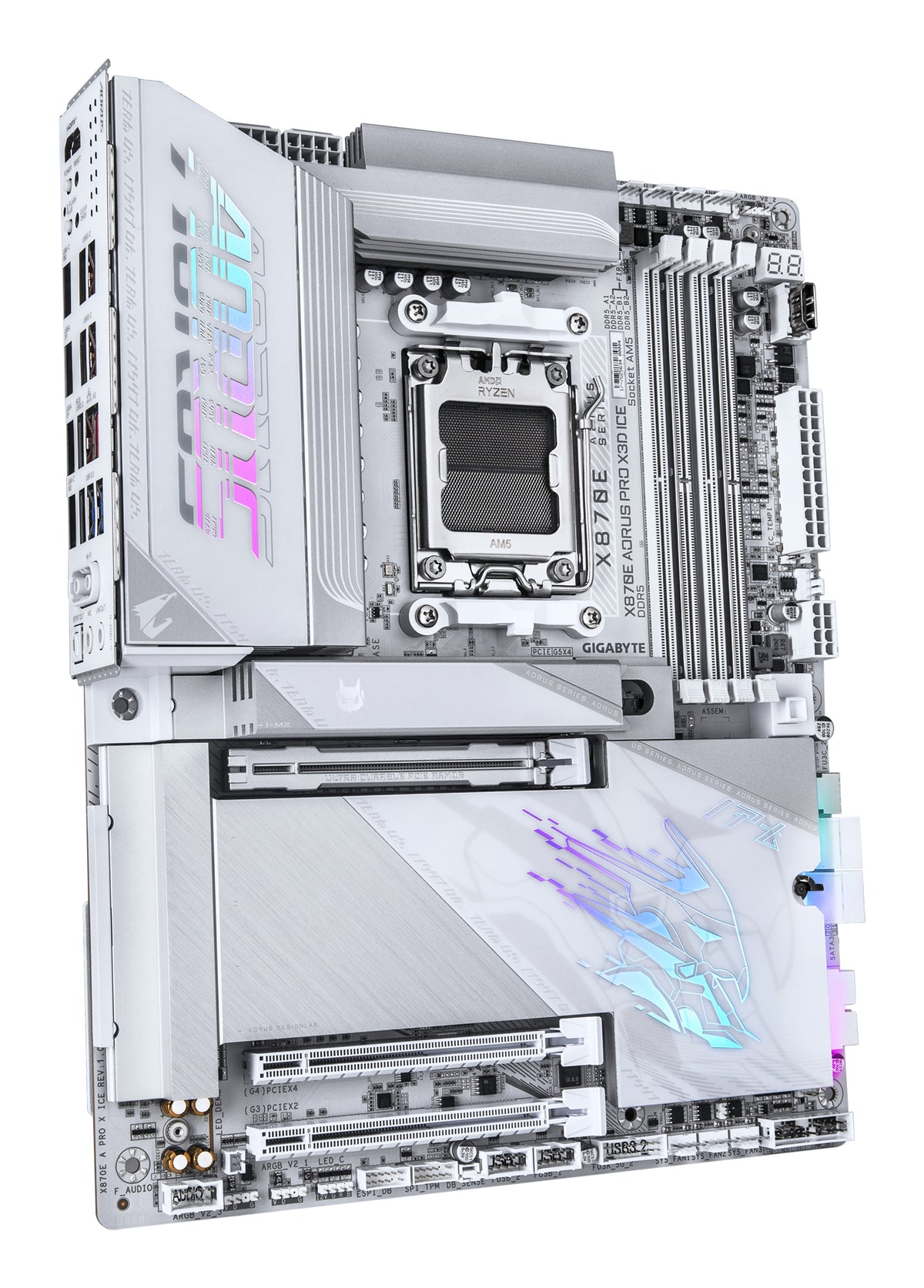

Gigabyte X870E A PRO X3D ICE: AM5, DDR5 256GB, ALC1220, 5GbE LAN, Q-Flash

Gigabyte X870E A PRO X3D ICE: AM5, DDR5 256GB, ALC1220, 5GbE LAN, Q-Flash, Smart Backup, GCC, ATX, Win11, Ryzen 7000–9000

CPU
AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors

Chipset
AMD X870E

Memory
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Audio
Realtek® ALC1220 CODEC

LAN
Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Bundled Software
Norton® Internet Security (OEM version)

Operating System
Support for Windows 11 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm

Features

• X3D Turbo Mode 2.0: Incredible X3D performance unleashed by AI
• Dual Channel DDR5 : 4*DIMMs with AMD EXPO Memory Module Support. DDR5 OC up to 9000MT/s
• AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
• Digital twin 18+2+2 phases VRM solution
• M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks
• Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4
• Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

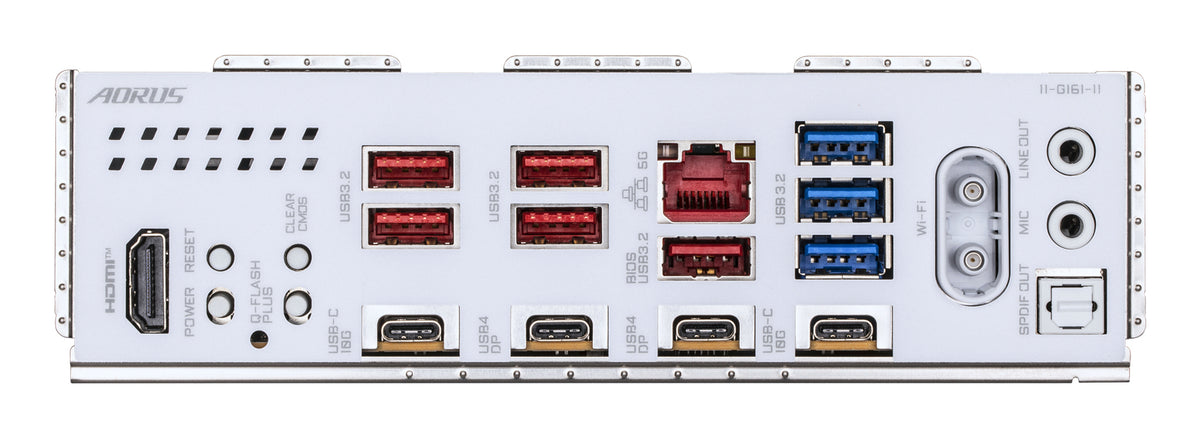

• Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W

Specifications
