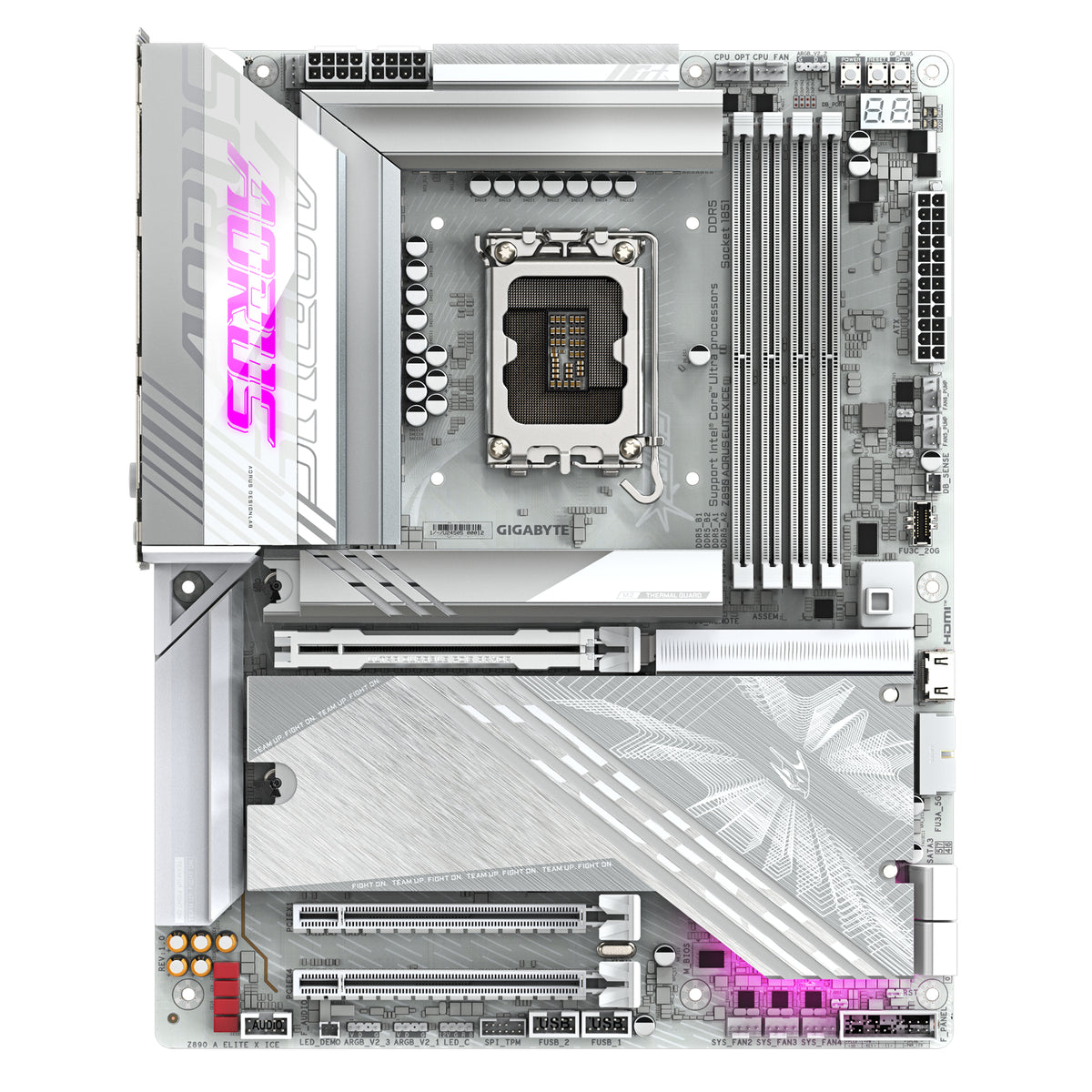

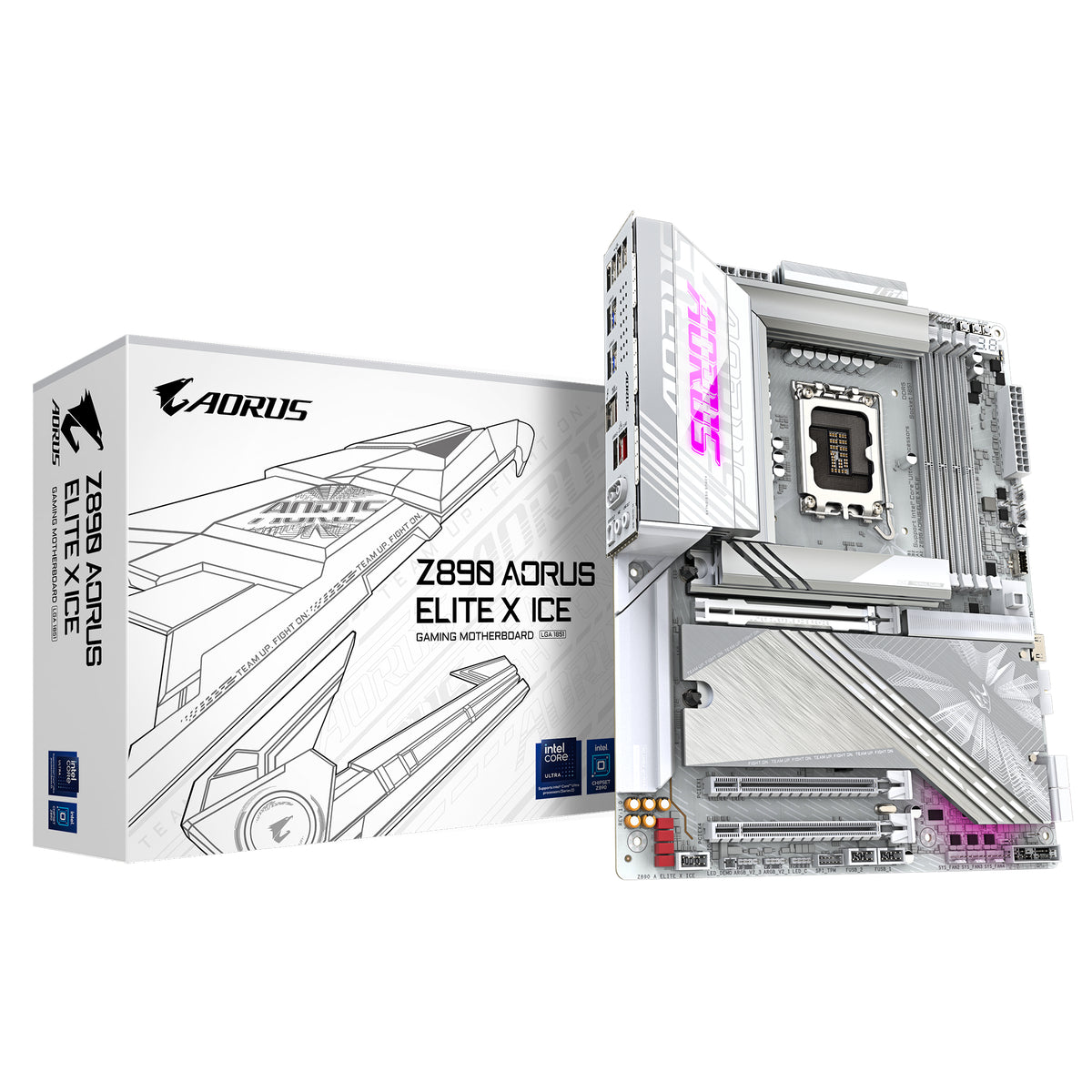

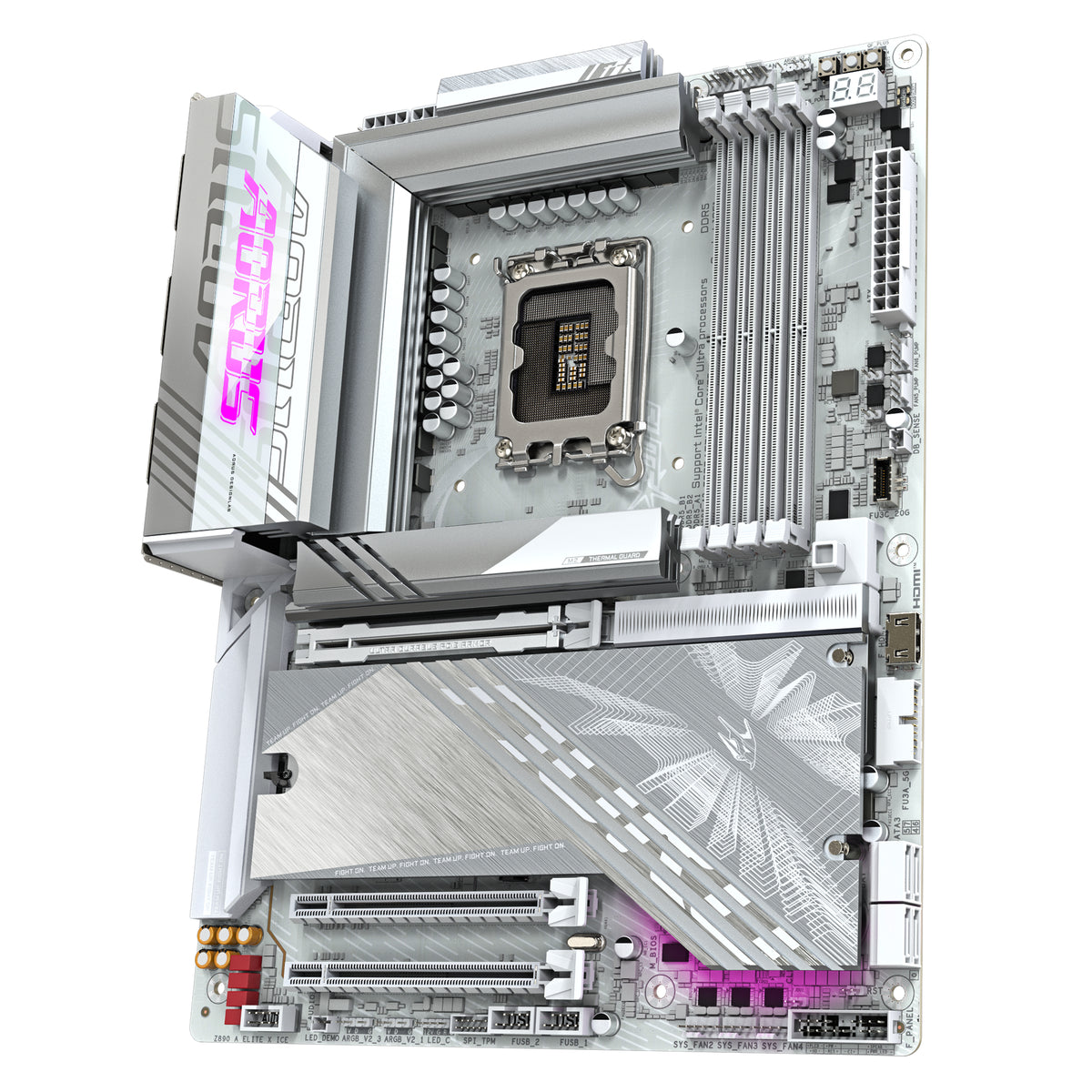

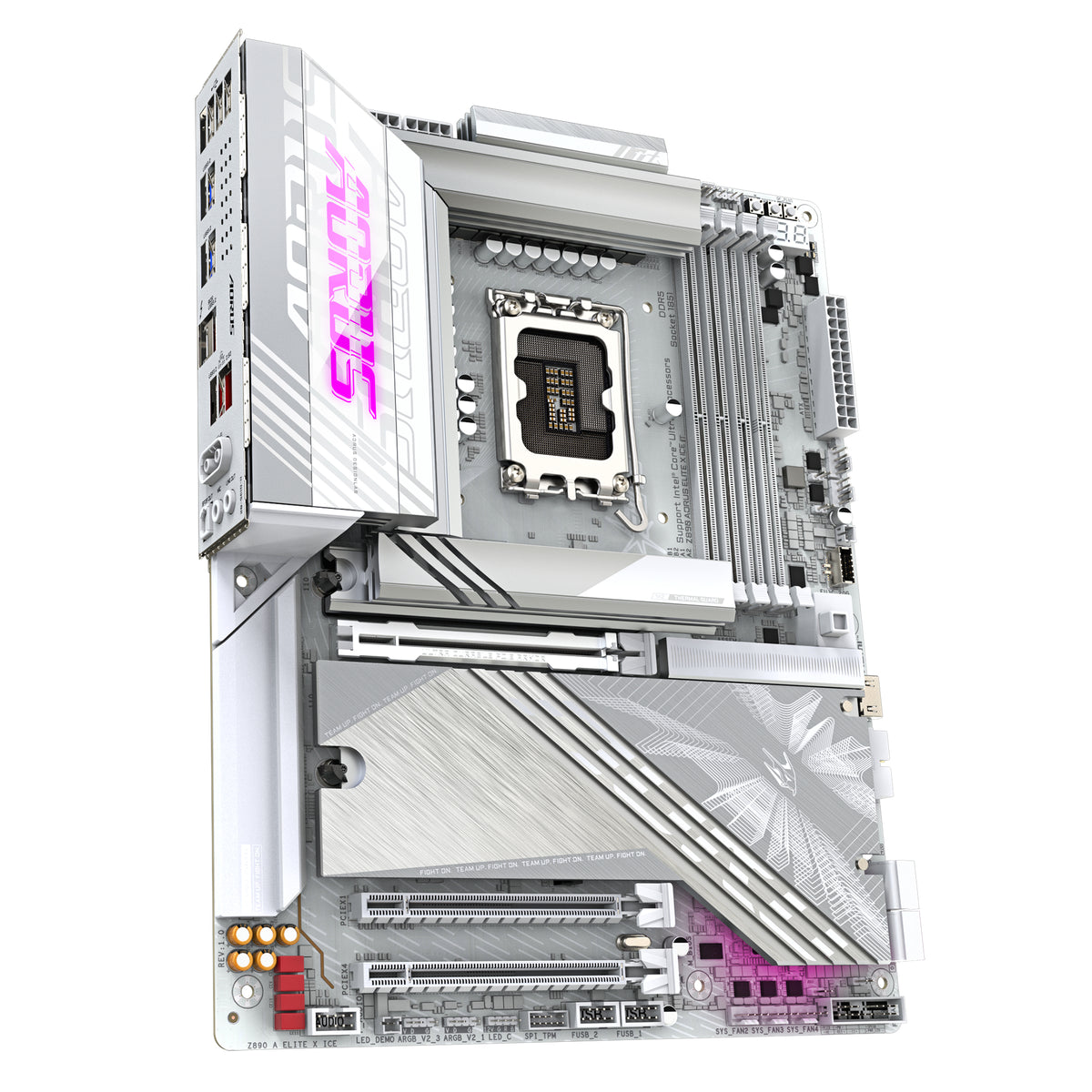

Gigabyte Z890 AORUS ELITE X ICE MB Intel LGA 1851 ATX Motherboard, 4x DDR5

Gigabyte Z890 AORUSELITE WF7 Intel LGA 1851 ATX Motherboard, 4x DDR5 ~256GB, 3x PCI-E x16, 4x M.2, 4x SATA, 5x USB 3.2, 1x USB-C, 4x USB 2.0

Specification:

CPU
LGA1851 socket: Support for Intel® Core™ Ultra Processors
L3 cache varies with CPU

Chipset
Intel® Z890 Express Chipset

Memory
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Audio
Realtek® ALC1220 CODEC

LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module
MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard

Expansion Slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)

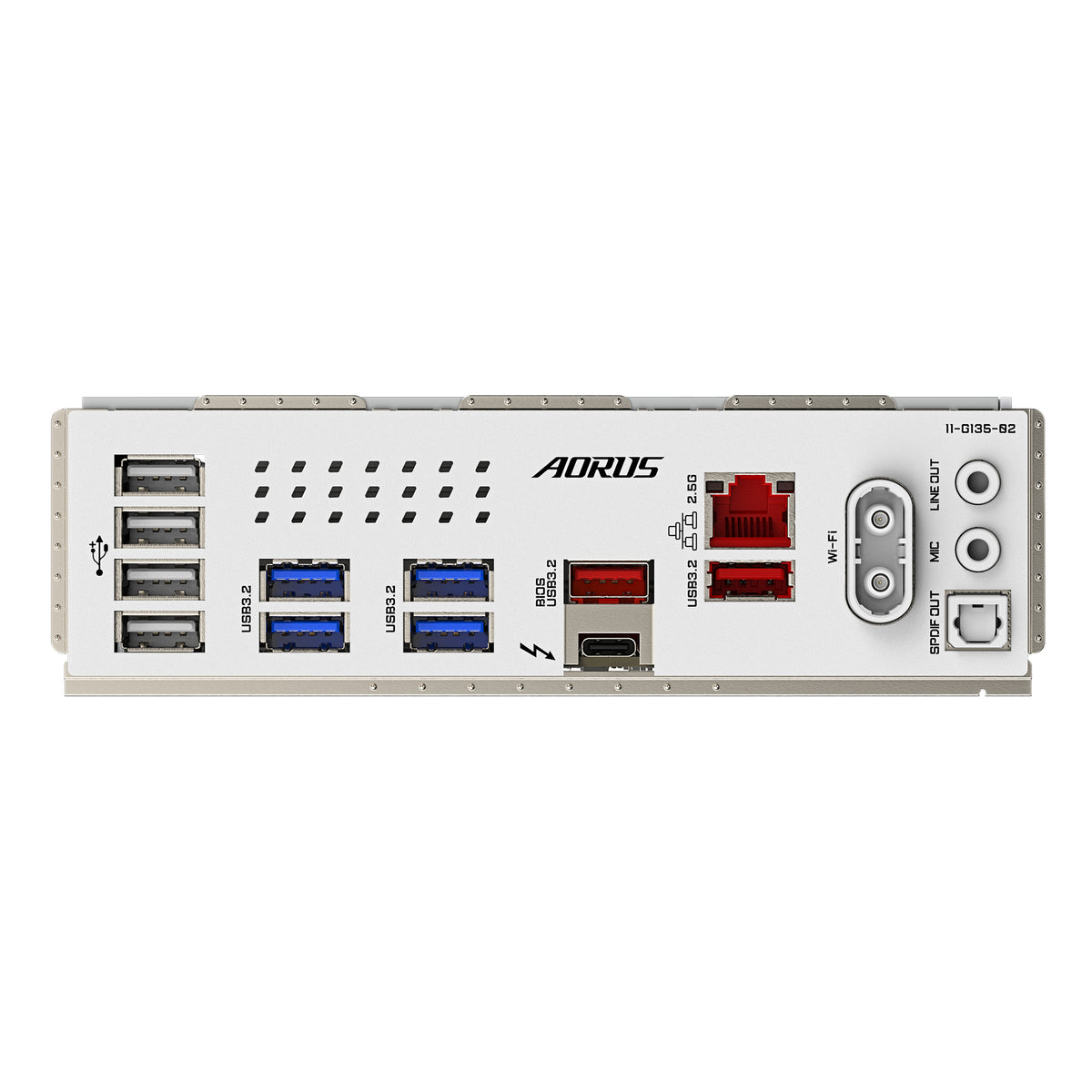

Back Panel Connectors
1 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports)
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x DisplayPort (Note)
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks

Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Form Factor
ATX Form Factor; 30.5cm x 24.4cm

Features

• Digital 16+1+2+1 Phases 80A SPS VRM with Tantalum Polymer Capacitor
• Reinforced PCIe UD Slot X PCIe 5.0 with PCIe EZ-Latch Plus Design
• PCIe M.2 design (Up to 25110) with M.2 EZ-Latch Plus & Thermal Guard
• Fully Covered MOSFET Heatsinks with heatpipe/M.2 EZ-Latch Click Design
• 2x2 Wi-Fi 7 with WIFI EZ-Plug Design
• 2.5GbE LAN, THUNDERBOLT 4 Type-C, USB 3.2 Gen2x2 Type-C
